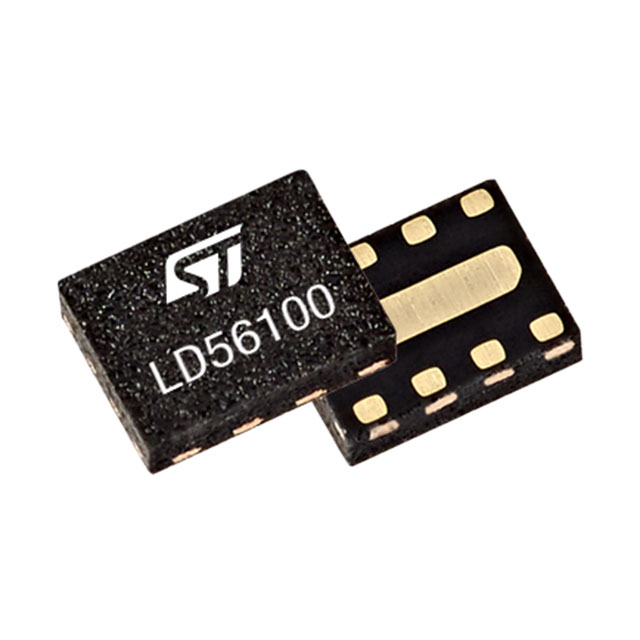

LD56100DPU25R
lmages are for reference only.LD56100DPU25R
IC REG LINEAR 2.5V 1A 8DFN
Datasheet8-XFDFN Exposed Pad
60,509 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A 8-DFN (1.6x1.2)
LD56100DPU25R
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.19V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 155 µA |
| PSRR | 70dB ~ 55dB (1kHz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (1.6x1.2) |
| Base Product Number | LD56100 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LD56100DPU18R | LD56100DPU28R | LD56100DPU30R | LD56100DPU33R |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.8V 1A 8DFN | IC REG LINEAR 2.8V 1A 8DFN | IC REG LINEAR 3V 1A 8DFN | IC REG LINEAR 3.3V 1A 8DFN |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
