LDD-A404NI
lmages are for reference only.LDD-A404NI
DISPLAY 7-SEG 0.4" DBL RED 16DIP
Datasheet16-DIP (0.500", 12.70mm)
83,693 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 10mA 0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm) 16-DIP (0.500", 12.70mm)
LDD-A404NI
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 2 |
| Size / Dimension | 0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm) |
| Digit/Alpha Size | 0.40" (10.16mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Millicandela Rating | 3.9mcd |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
| Package / Case | 16-DIP (0.500", 12.70mm) |
| Base Product Number | LDD-A404 |
| Display Format | - |
| Product Attribute |  |
 |
 |
|

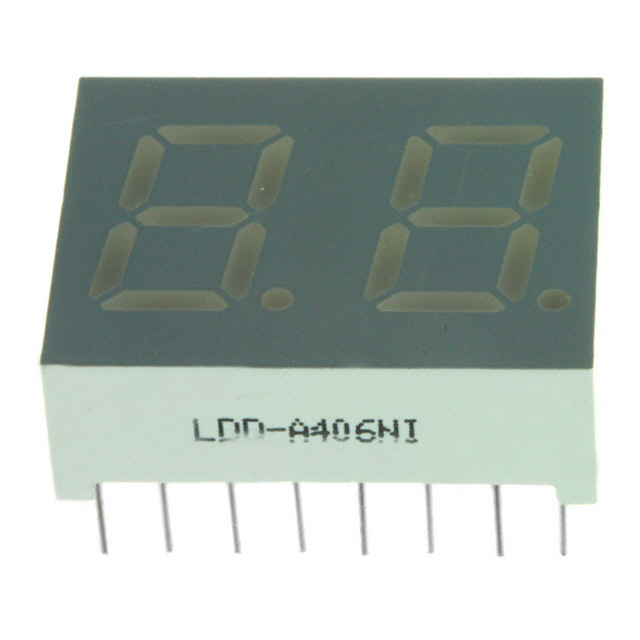

| Part Number | LDD-A402NI | LDD-A406NI | LDD-A4304RI | LDD-A5002RI |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.4" DBL GRN 16DIP | DISPLAY 7-SEG 0.4" DBL RED 16DIP | DISPLAY 7SEG 0.43" DBL RED 18DIP | DISPLAY 7SEG 0.5" DBL GRN 18DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
