LDD-C4302RI
lmages are for reference only.LDD-C4302RI
DISPLAY 7SEG 0.43" DBL GRN 18DIP
Datasheet18-DIP (0.600", 15.24mm)
44,242 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Cathode 2.2V 10mA 0.740" H x 0.937" W x 0.256" D (18.80mm x 23.80mm x 6.50mm) 18-DIP (0.600", 15.24mm)
LDD-C4302RI
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 2 |
| Size / Dimension | 0.740" H x 0.937" W x 0.256" D (18.80mm x 23.80mm x 6.50mm) |
| Digit/Alpha Size | 0.43" (11.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Green |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 10mA |
| Millicandela Rating | 3.9mcd |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 105mW |
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Base Product Number | LDD-C4302 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

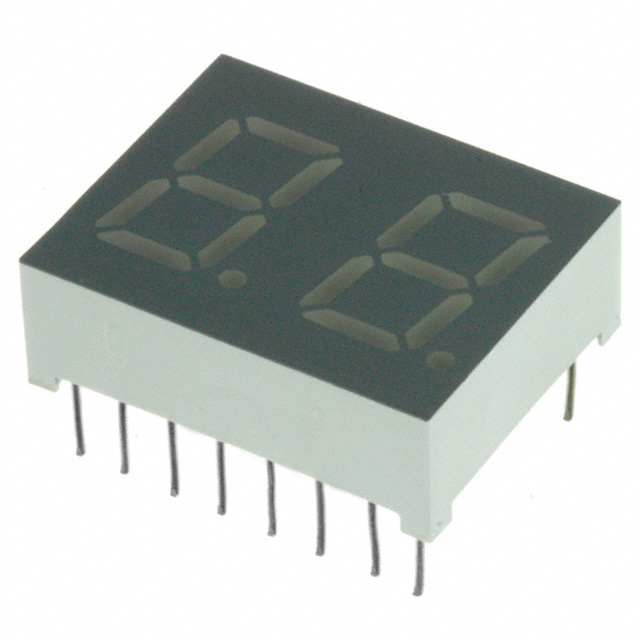

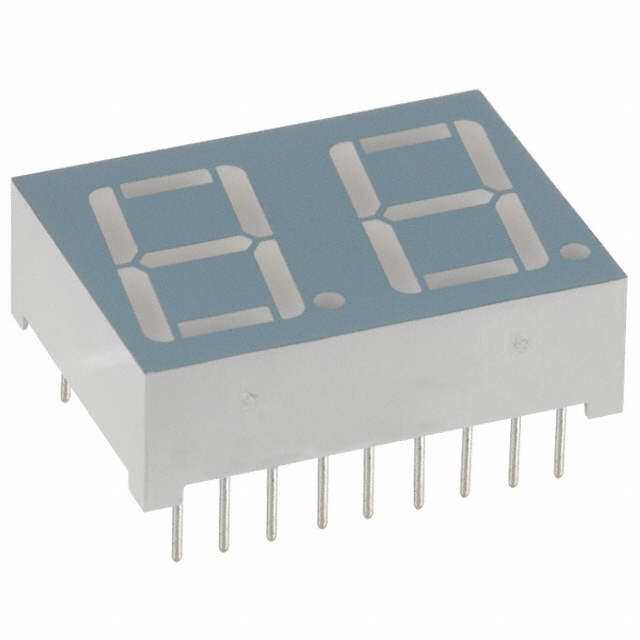

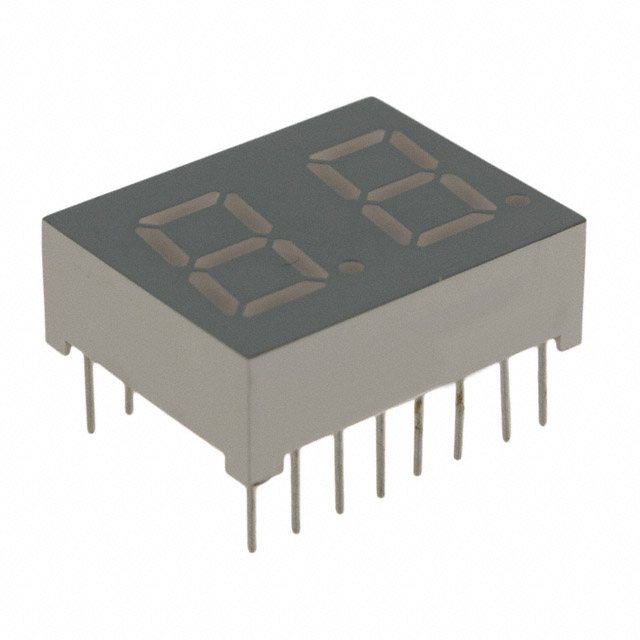

| Part Number | LDD-C404NI | LDD-C406NI | LDD-C512RI | LDD-C514RI |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7-SEG 0.4" DBL RED 16DIP | DISPLAY 7-SEG 0.4" DBL RED 16DIP | DISPLAY 7SEG 0.56" DBL GRN 18DIP | DISPLAY 7SEG 0.56" DBL RED 18DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
