Product CatalogPart Number
LDFL016362V8-V0E
Manufacturer
Chemi-ConDescription
CMC 3.6MH 16A 2LN TH
Datasheet
DatasheetPackage
Vertical, No Base, 4 PC Pin
In Stock
72,529 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LDFL016362V8-V0E
LDFL016362V8-V0E
lmages are for reference only.Payment Methods
Delivery Services
3.6 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 16A DCR 7.5mOhm
Quick Inquiry
LDFL016362V8-V0E
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Chemi-Con |
| Series | FL-V |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 3.6 mH @ 100 kHz |
| Current Rating (Max) | 16A |
| DC Resistance (DCR) (Max) | 7.5mOhm |
| Voltage Rating - DC | 500V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 130°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.457" Dia (37.00mm) |
| Height (Max) | 1.339" (34.00mm) |
| Package / Case | Vertical, No Base, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

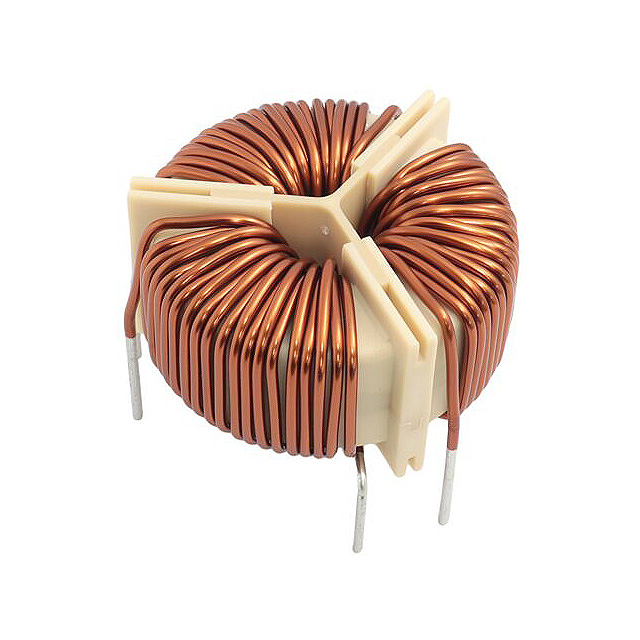

| Part Number | LDFL010102LT-V0E | LDFL010103LJ-V0E | LDFL010143V72H0E | LDFL010302LT-V0E |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | NANOCRYSTALLINE COMMON MODE COIL | NANOCRYSTALLINE COMMON MODE COIL | CMC 14MH 10A 2LN TH | NANOCRYSTALLINE COMMON MODE COIL |
| Series | FL | FL | FL-V | FL |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
LDFL001802LS-V0E
Chemi-Con
LDFL002302LS-V0E
Chemi-Con
LDFL003152LS-V0E
Chemi-Con
LDFL003153L6-V0E
Chemi-Con

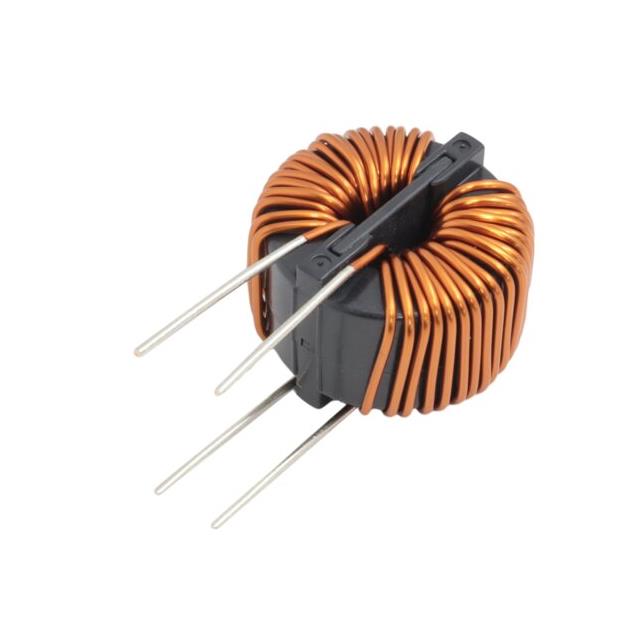

LDFL003552L5-V0E
Chemi-Con

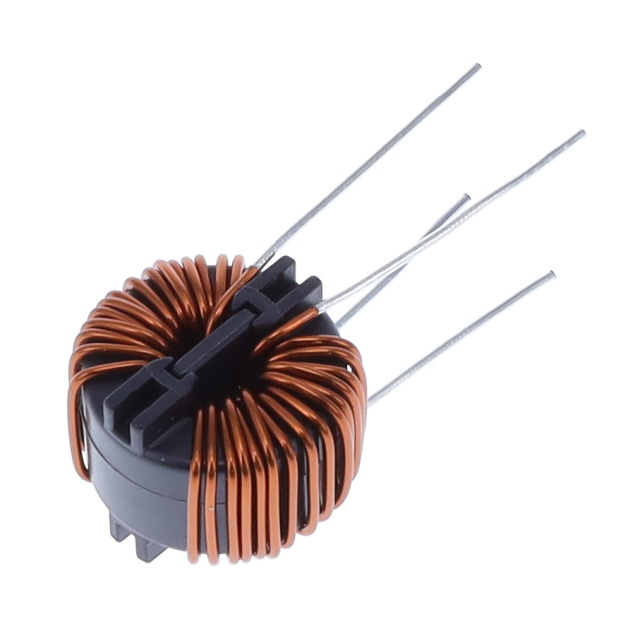

LDFL004272VS-V0E
Chemi-Con
LDFL005103LR-V0E
Chemi-Con
LDFL005132L5-V0E
Chemi-Con
LDFL005302LT-V0E
Chemi-Con
LDFL005332L6-V0E
Chemi-Con
LDFL005502LT-V0E
Chemi-Con
LDFL006102VS-V0E
Chemi-Con
LDFL006832VD-V0E
Chemi-Con
LDFL007652V6-V0E
Chemi-Con
LDFL008102L6-V0E
Chemi-Con

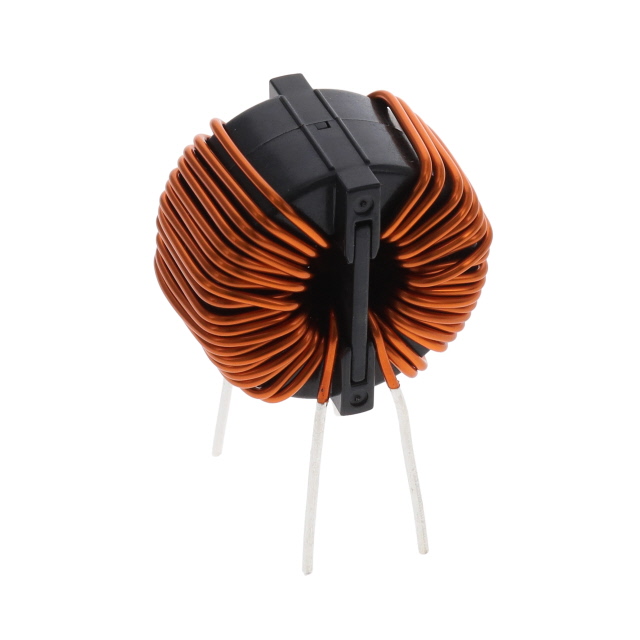

LDFL008123VV-V0E
Chemi-Con
LDFL008451L5-V0E
Chemi-Con

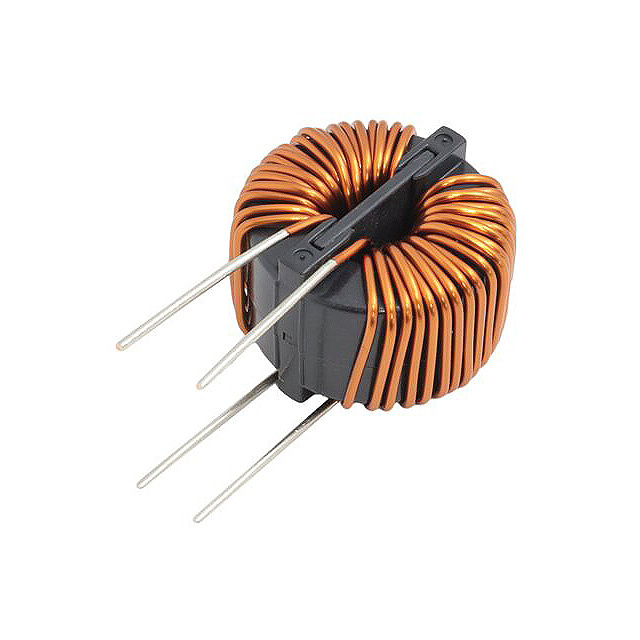

LDFL009412VD-V0E
