Product CatalogPart Number
LDL03-12S12M
Manufacturer
P-DUKE TechnologyDescription
DC DC CONVERTER 12V 3W
Datasheet
DatasheetPackage
12-SIP Module, 11 Leads
In Stock
64,437 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LDL03-12S12M
LDL03-12S12M
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 250mA 9V - 18V Input
Quick Inquiry
LDL03-12S12M
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | LDL03 (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 11 Leads |
| Size / Dimension | 0.83" L x 0.38" W x 0.44" H (21.0mm x 9.6mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | LDL03 |
| Voltage - Isolation | 1.6 kV |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

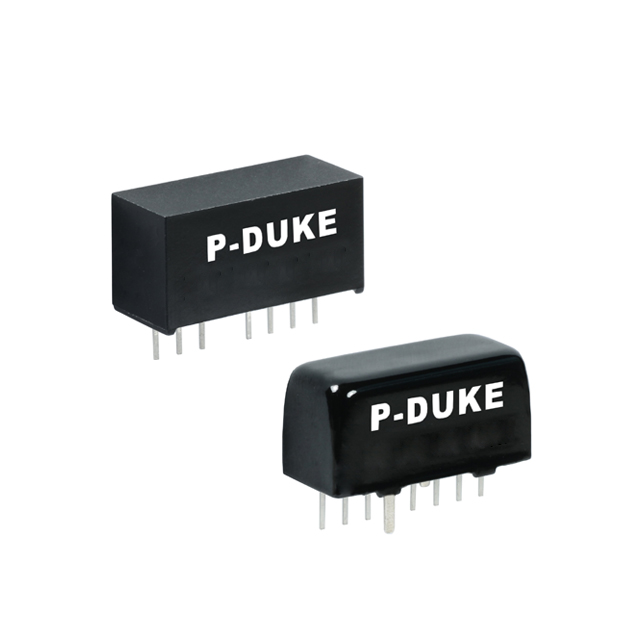

| Part Number | LDL03-12S05M | LDL03-12S12M | LDL03-12S24M | LDL03-05S09M |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 3W | DC DC CONVERTER 12V 3W | DC DC CONVERTER 24V 3W | DC DC CONVERTER 9V 3W |
| Series | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tube | Tube | Tube | Tube |
