LDLN025J2925R
lmages are for reference only.LDLN025J2925R
IC REG LIN 2.925V 250MA 4FLIPCHP
Datasheet4-XFBGA, FCBGA
83,812 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA 4-FlipChip
LDLN025J2925R
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.925V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 25 µA |
| PSRR | 80dB ~ 60dB (100Hz ~ 100KHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, FCBGA |
| Supplier Device Package | 4-FlipChip |
| Base Product Number | LDLN025 |
| Current - Supply (Max) | 425 µA |
| Product Attribute |  |
 |
 |
 |

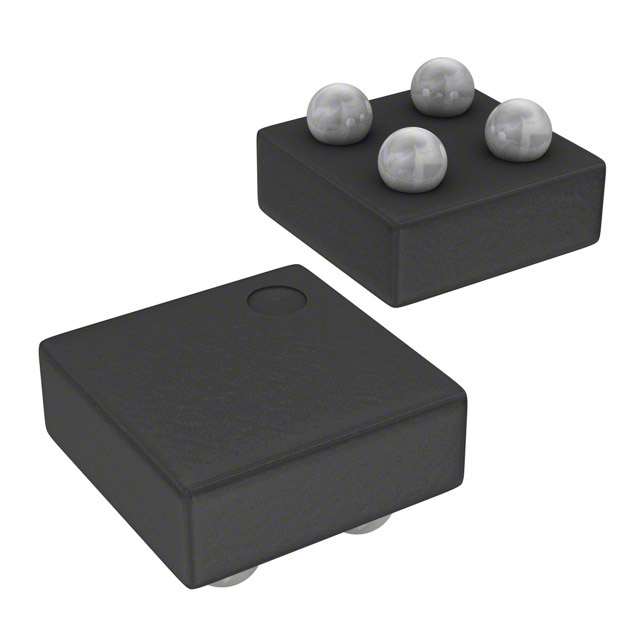

| Part Number | LDLN025J29R | LDLN025J12R | LDLN025J18R | LDLN025J25R |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN 2.9V 250MA 4FLIPCHIP | IC REG LIN 1.2V 250MA 4FLIPCHIP | IC REG LIN 1.8V 250MA 4FLIPCHIP | IC REG LIN 2.5V 250MA 4FLIPCHIP |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
