LDP01-42CAYD2R-AQ
lmages are for reference only.LDP01-42CAYD2R-AQ
TVS DIODE 36VWM 58.1VC TO-263AB
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
90,626 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
58.1V Clamp 86A Ipp Tvs Diode Surface Mount TO-263AB (D2PAK)
LDP01-42CAYD2R-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 36V |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 58.1V |
| Current - Peak Pulse (10/1000µs) | 86A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB (D2PAK) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
|
 |
 |

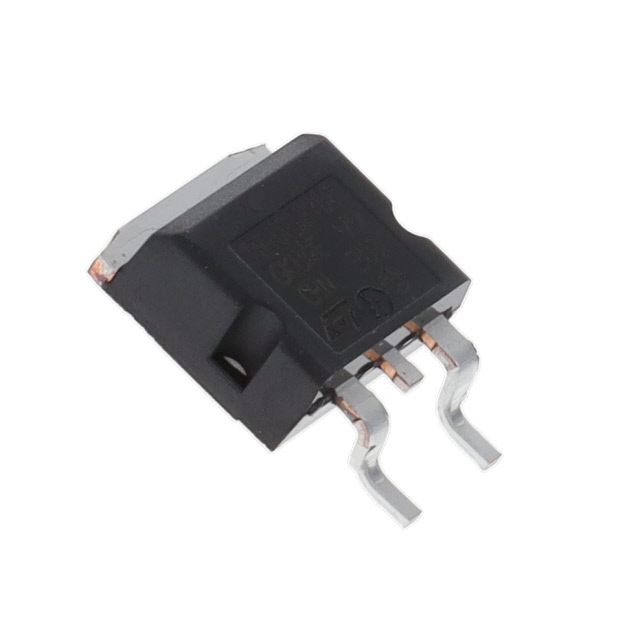

| Part Number | LDP01-42AY | LDP01-42CAYD2-AQ | LDP01-47AY | LDP01-26AY |
| Manufacturer | STMicroelectronics | Diotec Semiconductor | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 36VWM 57VC D2PAK | TVS DIODE 36VWM 58.1VC TO-263AB | TVS DIODE 40VWM 63VC D2PAK | TVS DIODE 22VWM 36VC D2PAK |
| Series | STMicroelectronics | Diotec Semiconductor | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
