LDS-CA14RI
lmages are for reference only.LDS-CA14RI
DISPLAY 7-SEG 1" SGL RED 10DIP
Datasheet10-DIP (1.200", 30.48mm)
30,591 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 4V 10mA 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.200", 30.48mm)
LDS-CA14RI
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) |
| Digit/Alpha Size | 1.00" (25.40mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 4V |
| Current - Test | 10mA |
| Millicandela Rating | 9.8mcd |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
| Package / Case | 10-DIP (1.200", 30.48mm) |
| Base Product Number | LDS-CA14 |
| Display Format | - |
| Product Attribute |  |
 |
|
|

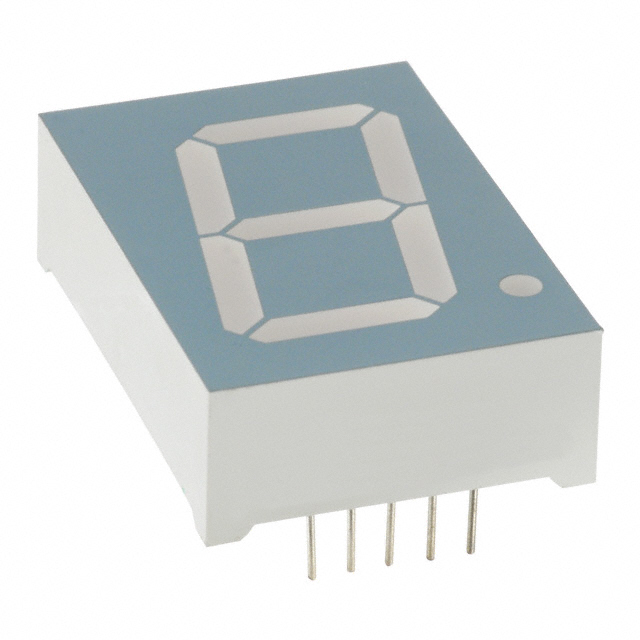

| Part Number | LDS-CA106RI | LDS-CA12RI | LDS-CA13RI | LDS-CA16RI |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 1.02" SGL RED 14DIP | DISPLAY 7-SEG 1" SGL GREEN 10DIP | DISPLAY 7-SEG 1" SGL YLW 10DIP | DISPLAY 7-SEG 1" SGL RED 10DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
