LDS-HTA302RI
lmages are for reference only.LDS-HTA302RI
DISPLAY 7SEG 0.31" SGL GRN 10DIP
Datasheet10-DIP (0.300", 7.62mm)
53,585 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 10mA 0.752" H x 0.401" W x 0.240" D (19.10mm x 10.18mm x 6.10mm) 10-DIP (0.300", 7.62mm)
LDS-HTA302RI
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.752" H x 0.401" W x 0.240" D (19.10mm x 10.18mm x 6.10mm) |
| Digit/Alpha Size | 0.31" (7.87mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Green |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 10mA |
| Millicandela Rating | 2.5mcd |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 105mW |
| Package / Case | 10-DIP (0.300", 7.62mm) |
| Base Product Number | LDS-HTA302 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

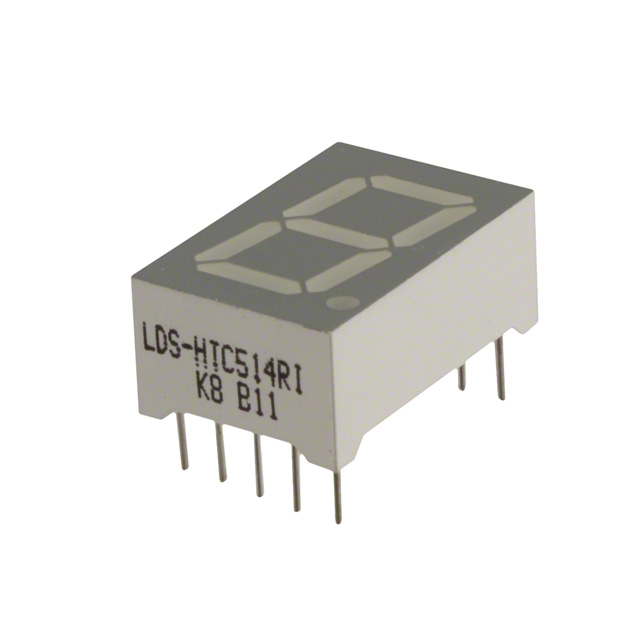

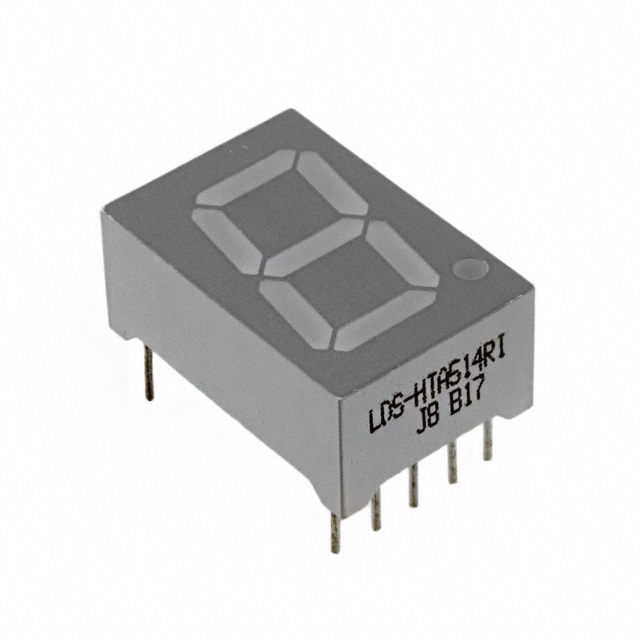

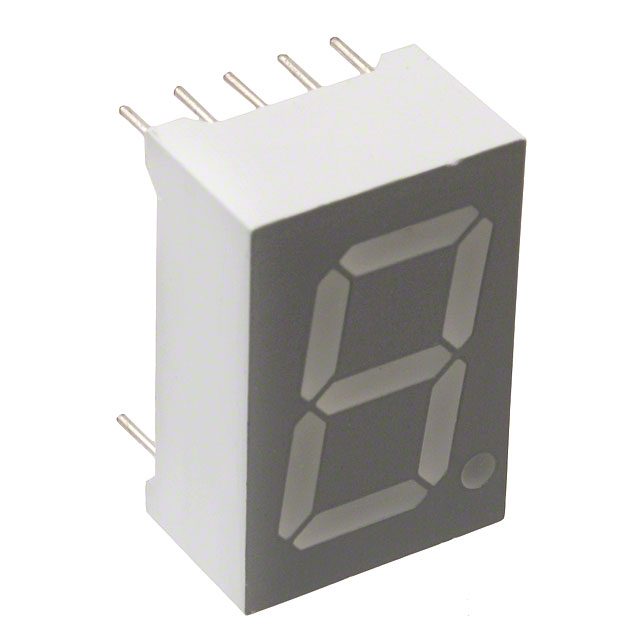

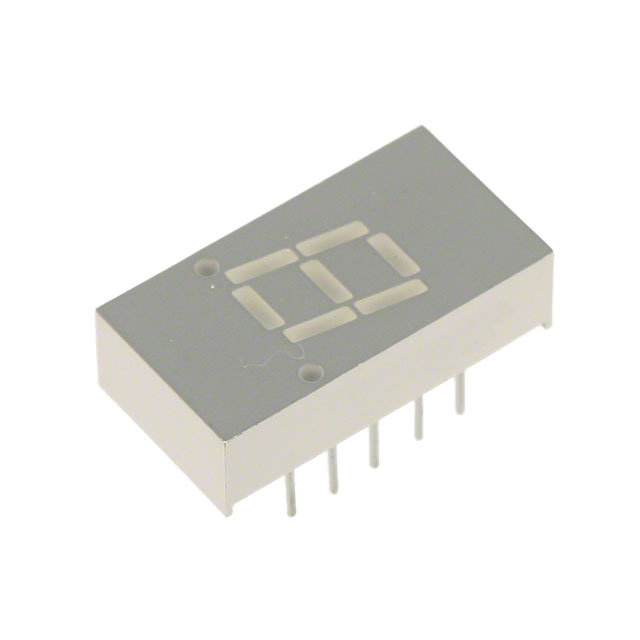

| Part Number | LDS-HTA304RI | LDS-HTA514RI | LDS-HTC512RI | LDS-HTC514RI |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.31" SGL RED 10DIP | DISPLAY 7SEG 0.56" SGL RED 10DIP | DISPLAY 7SEG 0.56" SGL GRN 10DIP | DISPLAY 7SEG 0.56" SGL RED 10DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
