Product CatalogPart Number
LESR 6-NP/SP1
Manufacturer
LEM USA Inc.Description
SENSORS
Datasheet
DatasheetPackage
Module
In Stock
105,574 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LESR 6-NP/SP1
LESR 6-NP/SP1
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 6A 1 Channel Hall Effect, Closed Loop Unidirectional Module
Quick Inquiry
LESR 6-NP/SP1
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | LESR |
| Packaging | Bulk |
| RoHS Status | |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 6A |
| Number of Channels | 1 |
| Output | Voltage |
| Sensitivity | 104.2mV/A |
| Frequency | DC ~ 300kHz |
| Linearity | ±0.1% |
| Accuracy | ±1.5% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 400ns |
| Current - Supply (Max) | - |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Unidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

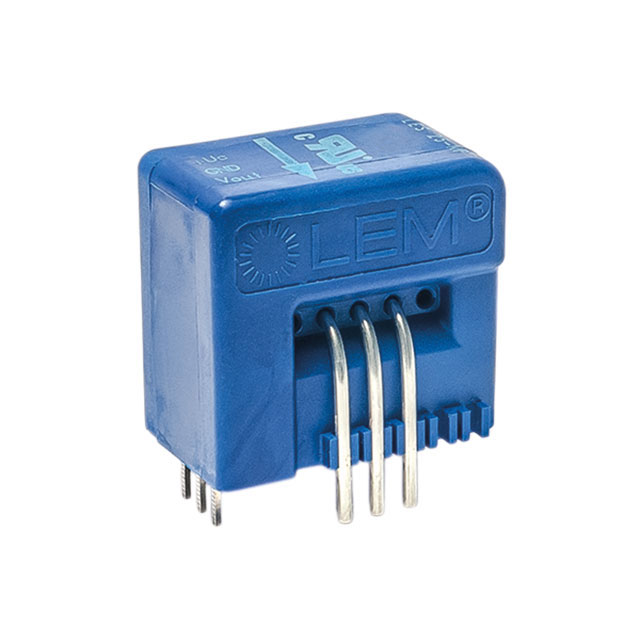

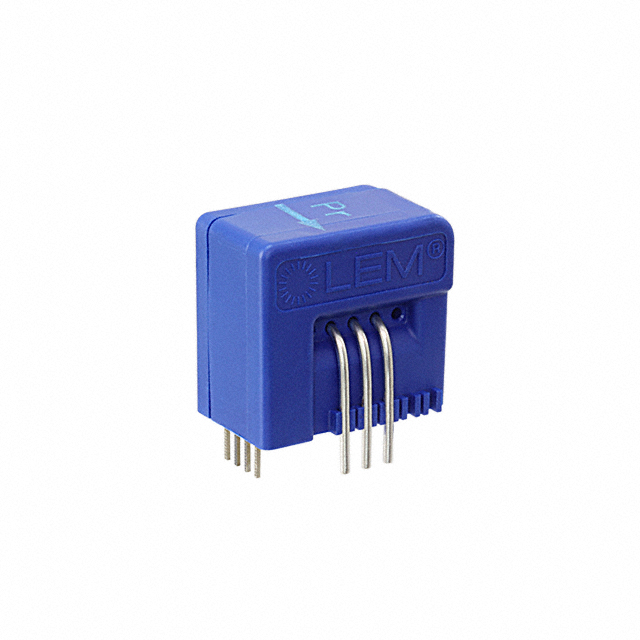

| Part Number | LESR 6-NP | LESR 6-NP KIT | LES 15-NP | LES 25-NP |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR CURRENT HALL 6A UNIPOLAR | 3 PIECE KIT SENSOR CURRENT HALL | SENSOR CURRENT HALL 15A UNIPOLAR | SENSOR CURRENT HALL 25A UNIPOLAR |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Tray | Bulk | Tray | Tray |
