LF2115NP-103

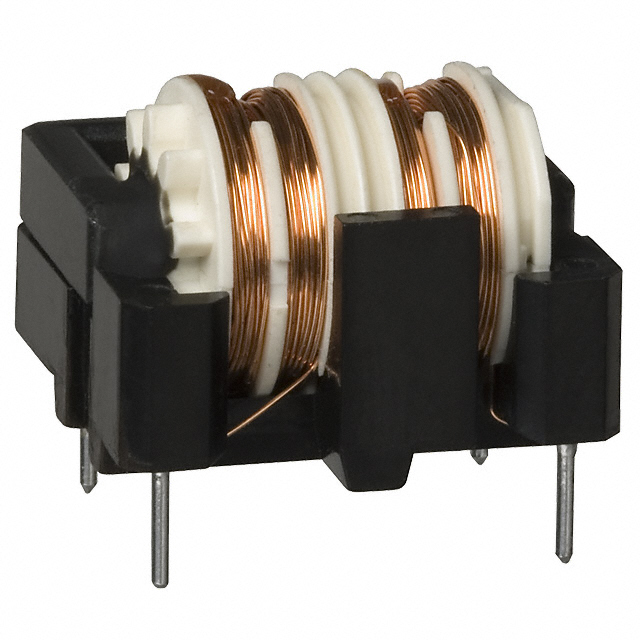

lmages are for reference only.LF2115NP-103
CMC 10MH 600MA 2LN TH
DatasheetVertical, 4 PC Pin
78,229 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1Ohm
LF2115NP-103
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Sumida America Components Inc. |
| Series | LF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 10 mH @ 1 kHz |
| Current Rating (Max) | 600mA |
| DC Resistance (DCR) (Max) | 1Ohm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | - |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.827" L x 0.827" W (21.00mm x 21.00mm) |
| Height (Max) | 0.669" (17.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LF2115NP-183 | LF2115NP-222 | LF2115NP-223 | LF2115NP-333 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 18MH 500MA 2LN TH | CMC 2.2MH 1.3A 2LN TH | CMC 22MH 400MA 2LN TH | CMC 33MH 300MA 2LN TH |
| Series | LF | LF | LF | LF |
| Packaging | Bulk | Bulk | Bulk | Bulk |
