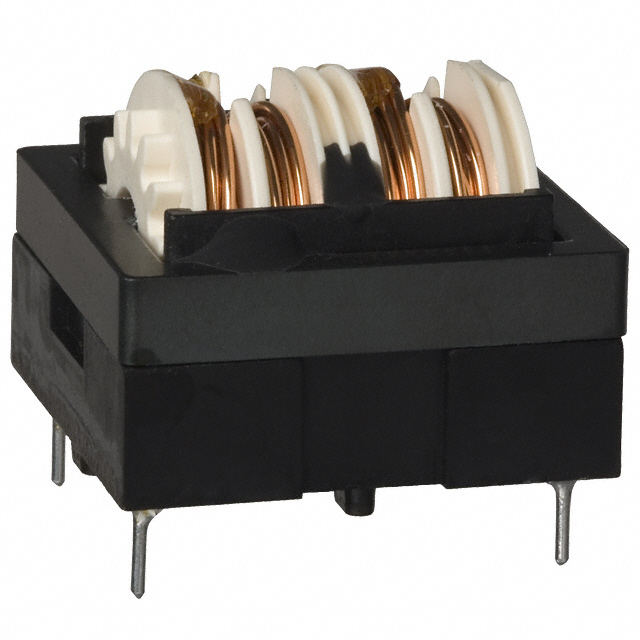

LF2823NP-682
lmages are for reference only.LF2823NP-682
CMC 6.8MH 1.6A 2LN TH
DatasheetVertical, 4 PC Pin
77,490 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.6A DCR 230mOhm
LF2823NP-682
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Sumida America Components Inc. |
| Series | LF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 6.8 mH @ 1 kHz |
| Current Rating (Max) | 1.6A |
| DC Resistance (DCR) (Max) | 230mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | - |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.122" L x 1.122" W (28.50mm x 28.50mm) |
| Height (Max) | 0.945" (24.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LF2823NP-683 | LF2823NP-123 | LF2823NP-182 | LF2823NP-223 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 68MH 600MA 2LN TH | CMC 12MH 1.2A 2LN TH | CMC 1.8MH 2.6A 2LN TH | CMC 22MH 1A 2LN TH |
| Series | LF | LF | LF | LF |
| Packaging | Bulk | Bulk | Bulk | Bulk |
