LFSPXO056289

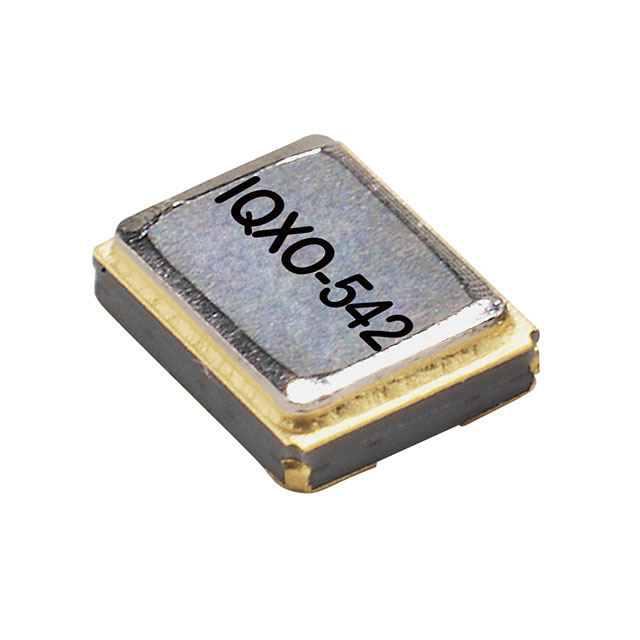

lmages are for reference only.LFSPXO056289
XTAL OSC XO 12.0000MHZ HCMOS SMD
Datasheet4-SMD, No Lead
31,479 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
LFSPXO056289
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | IQD Frequency Products |
| Series | IQXO-791 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 12 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 10mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | LFSPXO056168 | LFSPXO056169 | LFSPXO056188 | LFSPXO056188 |
| Manufacturer | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 12.0000MHZ CMOS SMD | XTAL OSC XO 13.0000MHZ CMOS SMD | XTAL OSC XO 19.2000MHZ CMOS SMD | XTAL OSC XO 19.2000MHZ CMOS SMD |
| Series | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
