Product CatalogPart Number
LFXTAL051643
Manufacturer
IQD Frequency ProductsDescription
CRYSTAL 32.7680KHZ 9PF SMD
Datasheet
DatasheetPackage
2-SMD, No Lead
In Stock
35,692 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LFXTAL051643
LFXTAL051643
lmages are for reference only.Payment Methods
Delivery Services
32.768 kHz ±20ppm Crystal 9pF 90 kOhms 2-SMD, No Lead
Quick Inquiry
LFXTAL051643
Specifications
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | IQD Frequency Products |
| Series | IQXC-25 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 9pF |
| ESR (Equivalent Series Resistance) | 90 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

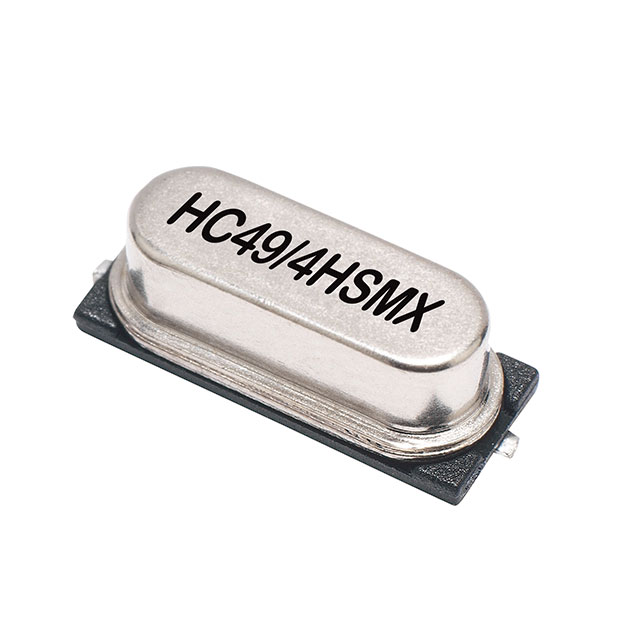

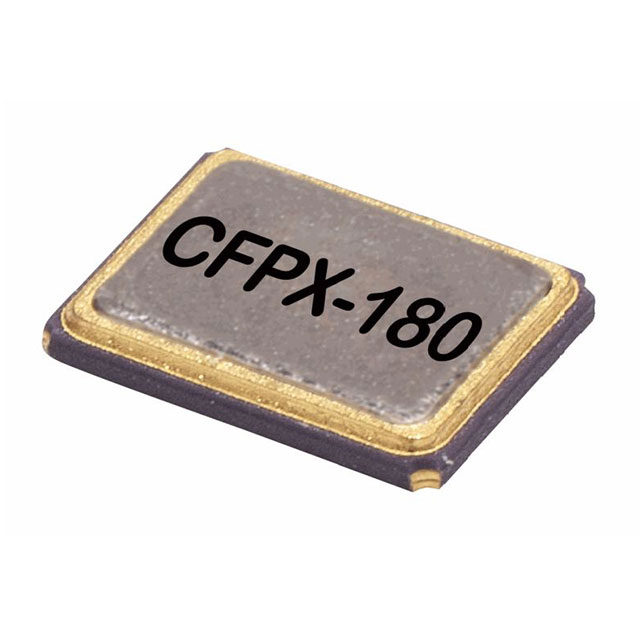

| Part Number | LFXTAL051643 | LFXTAL051068 | LFXTAL051068 | LFXTAL051235 |
| Manufacturer | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 32.7680KHZ 9PF SMD | CRYSTAL 25.0000MHZ 9PF SMD | CRYSTAL 25.0000MHZ 9PF SMD | CRYSTAL 16.0000MHZ 18PF SMD |
| Series | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
