LFXTAL059477
lmages are for reference only.LFXTAL059477
CRYSTAL 12.8000MHZ 15PF SMD
Datasheet4-SMD, No Lead
20,132 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12.8 MHz ±10ppm Crystal 15pF 70 Ohms 4-SMD, No Lead
LFXTAL059477
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | IQD Frequency Products |
| Series | CFPX-104 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 12.8 MHz |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 15pF |
| ESR (Equivalent Series Resistance) | 70 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

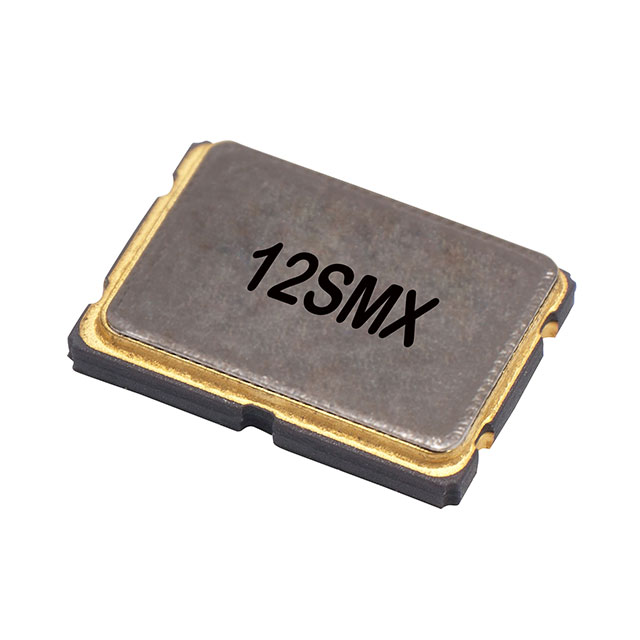

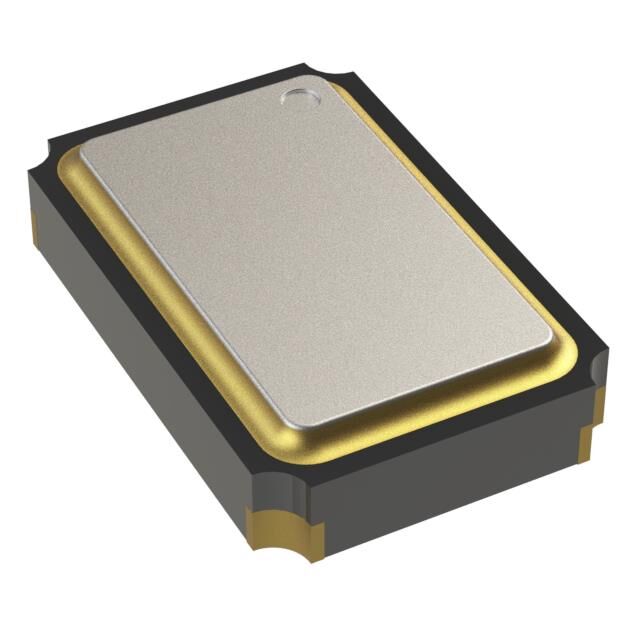

| Part Number | LFXTAL059477 | LFXTAL059082 | LFXTAL059082 | LFXTAL059158 |
| Manufacturer | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 12.8000MHZ 15PF SMD | 12SMX 7.0 X 5.0MM8.0 MHZ | 12SMX 7.0 X 5.0MM8.0 MHZ | CRYSTAL 8.0000MHZ 16PF SMD |
| Series | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
