LFXTAL072546
lmages are for reference only.LFXTAL072546
CRYSTAL 48.0000MHZ 10PF SMD
Datasheet4-SMD, No Lead
89,147 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
48 MHz ±15ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
LFXTAL072546
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | IQD Frequency Products |
| Series | IQXC-42 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 48 MHz |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±15ppm |
| Load Capacitance | 10pF |
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|

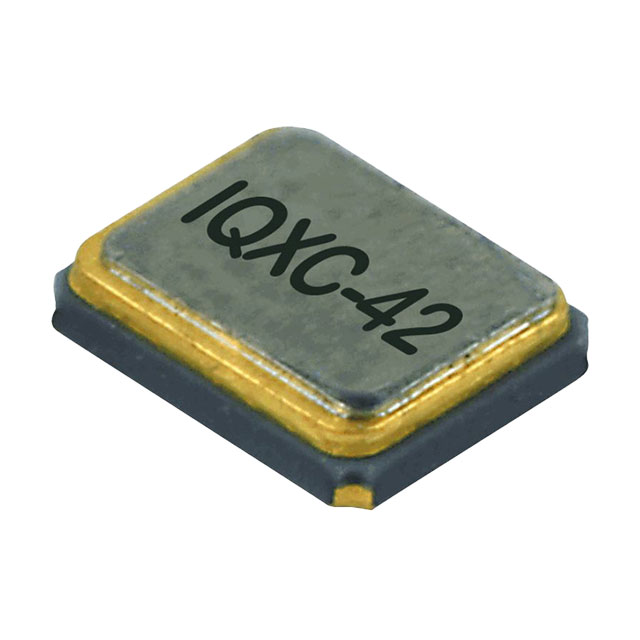

| Part Number | LFXTAL072541 | LFXTAL072541 | LFXTAL072543 | LFXTAL072543 |
| Manufacturer | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 27.0000MHZ 8PF SMD | CRYSTAL 27.0000MHZ 8PF SMD | CRYSTAL 27.0000MHZ 10PF SMD | CRYSTAL 27.0000MHZ 10PF SMD |
| Series | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
