LG A676-P1Q2-24-0-20-R33-Z
lmages are for reference only.LG A676-P1Q2-24-0-20-R33-Z
LED GREEN CLEAR SMD R/A
Datasheet2-SMD, Boomerang
69,153 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green 570nm LED Indication - Discrete 2V 2-SMD, Boomerang
LG A676-P1Q2-24-0-20-R33-Z
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | SIDELED® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 78.5mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 570nm |
| Wavelength - Peak | 572nm |
| Features | - |
| Package / Case | 2-SMD, Boomerang |
| Supplier Device Package | SMD |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Height (Max) | 4.20mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

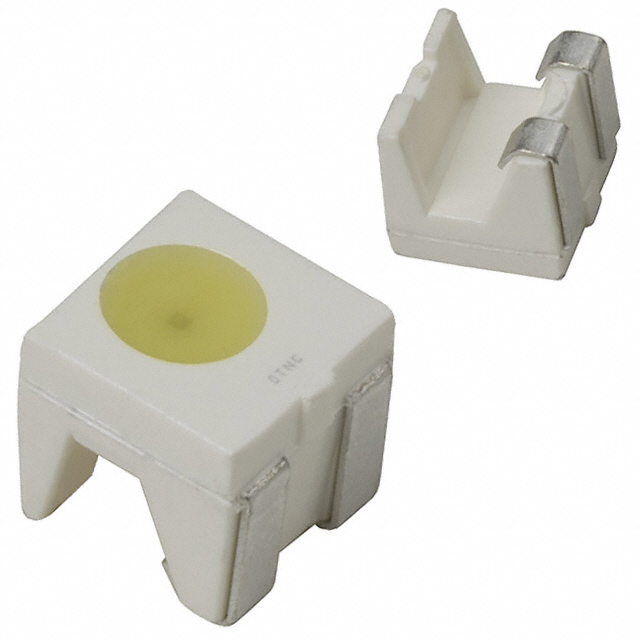

| Part Number | LG A670-K1M2-1-0-10-R33-Z | LG A676-Q1Q2-24-0-20-R33-Z | LG A676-Q1R1-34-0-20-R33-Z | LG A679-E2H1-1-0-2-R33-Z |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN CLEAR SMD R/A | LED GREEN CLEAR SMD | LED GREEN CLEAR SMD | LED GREEN CLEAR SMD R/A |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
