1500 µF 180 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
LGG2Z152MELA50
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LGG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
|
 |

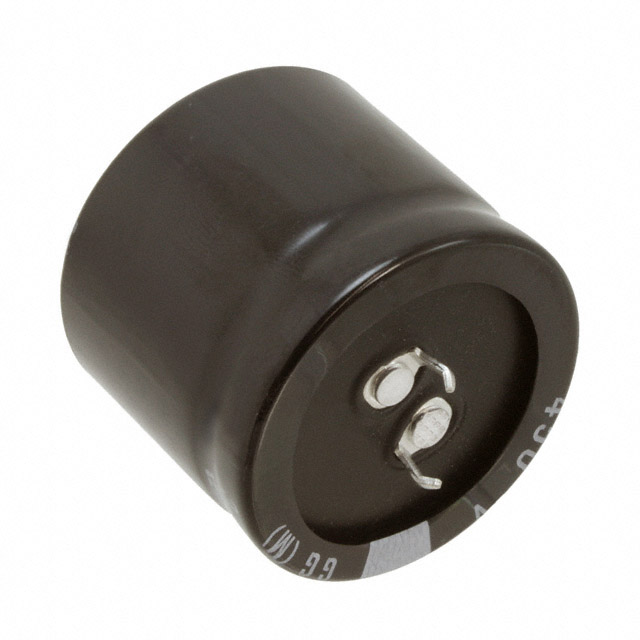

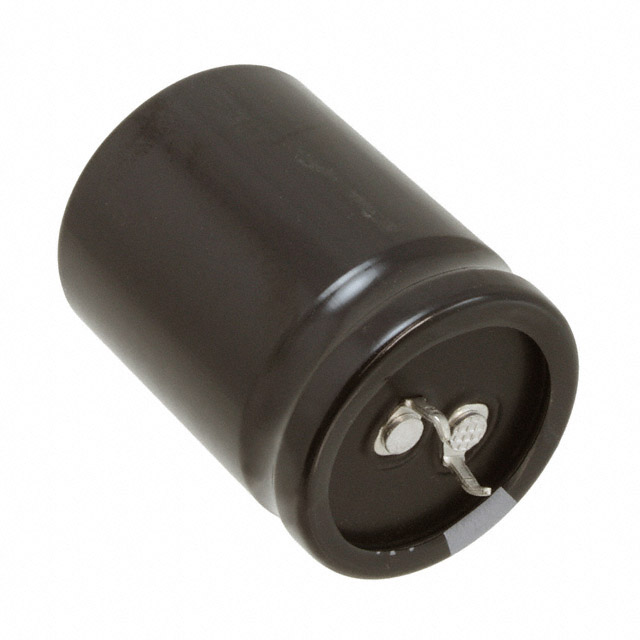

| Part Number | LGG2Z152MELA50 | LGG2Z152MELB40 | LGG2Z152MELB40 | LGG2Z152MELC30 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1500UF 20% 180V SNAP TH | CAP ALUM 1500UF 20% 180V SNAP TH | CAP ALUM 1500UF 20% 180V SNAP TH | CAP ALUM 1500UF 20% 180V SNAP TH |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |

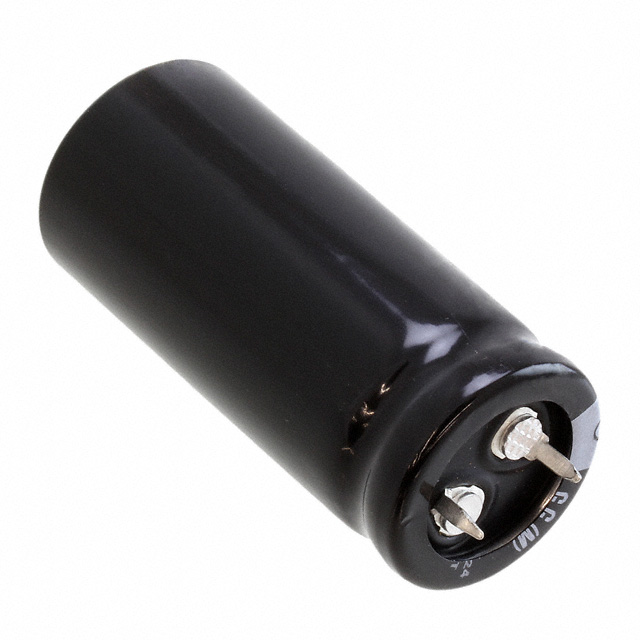

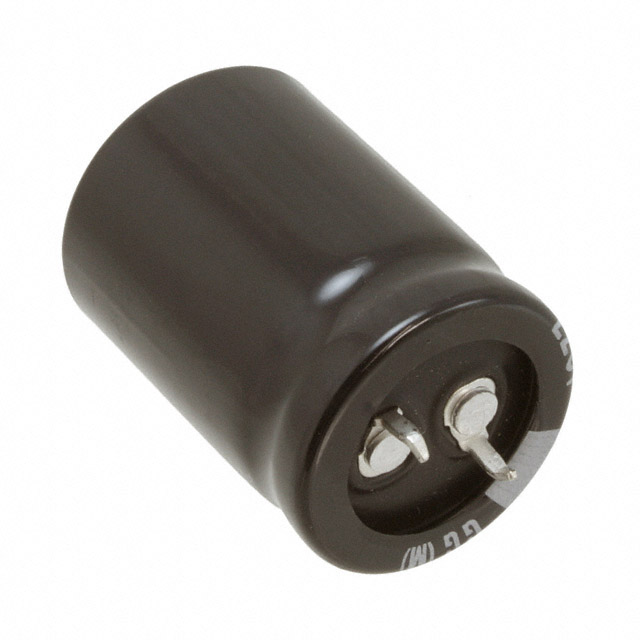

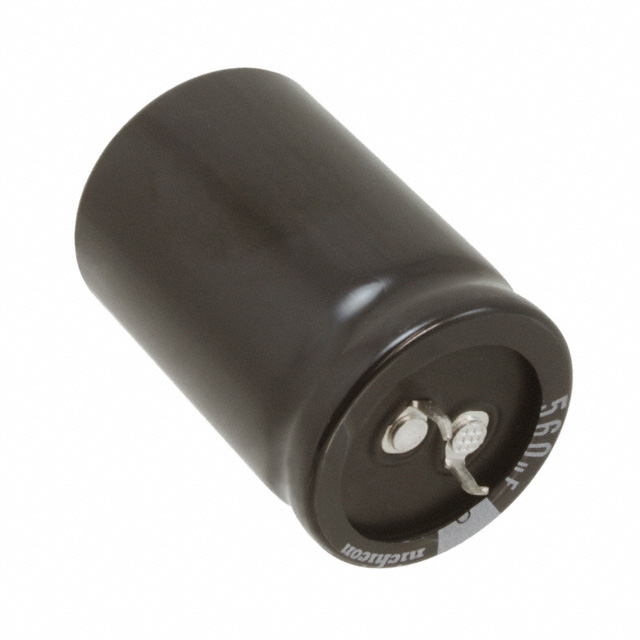

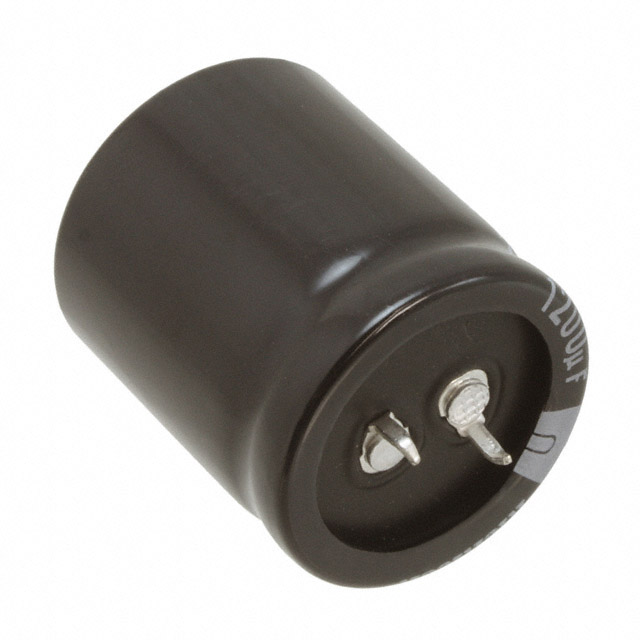

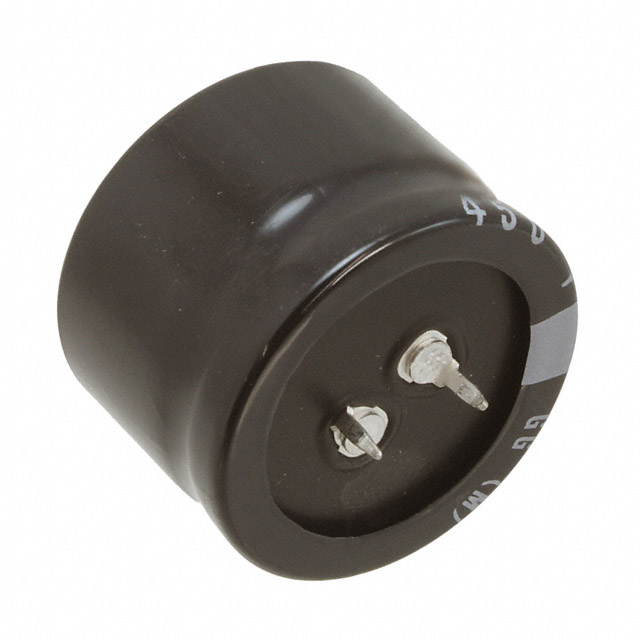

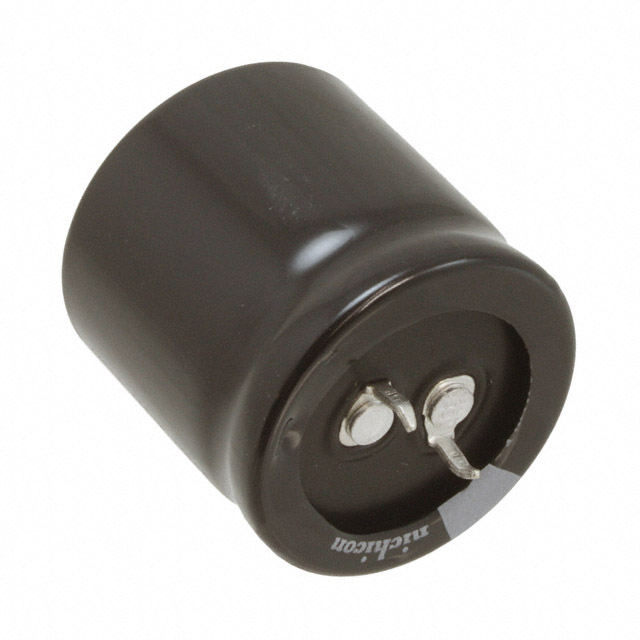

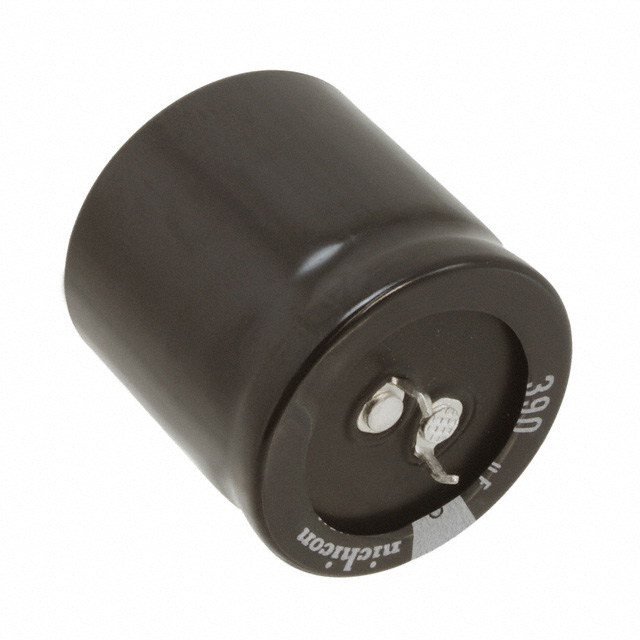

Recommended Products
