LGY1H153MELC50
lmages are for reference only.Payment Methods
Delivery Services
15000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
LGY1H153MELC50
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LGY |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.37 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

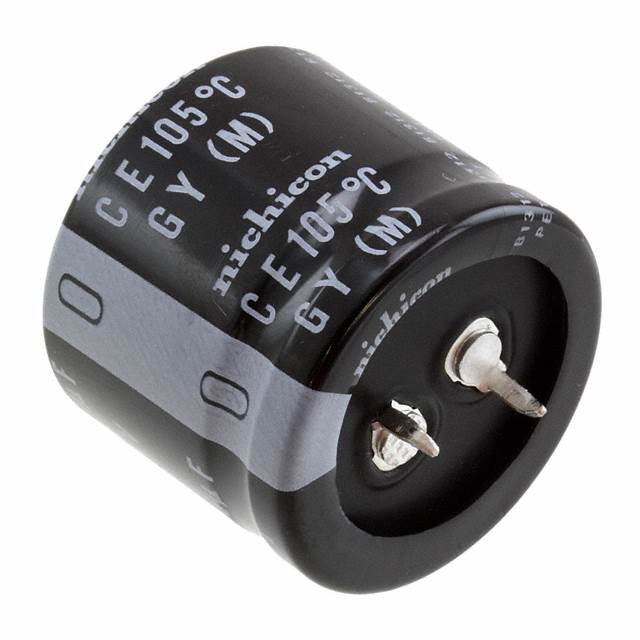

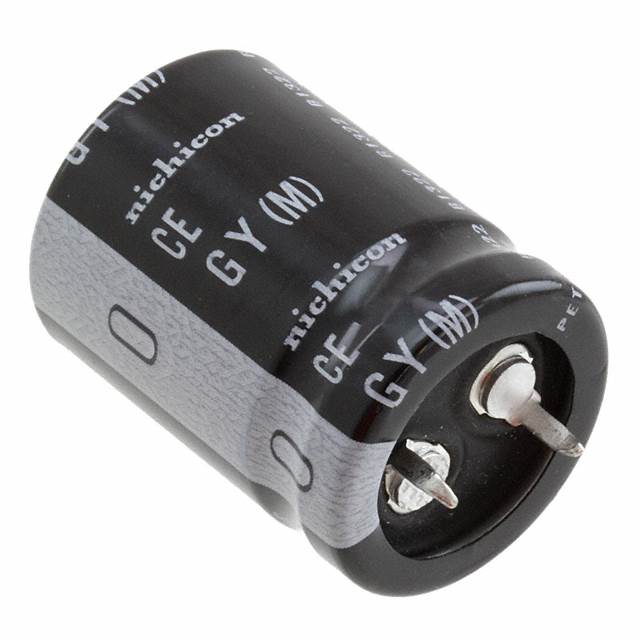

| Part Number | LGY1C103MELA25 | LGY1C103MELZ30 | LGY1C123MELA30 | LGY1C123MELB25 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10000UF 20% 16V SNAP TH | CAP ALUM 10000UF 20% 16V SNAP TH | CAP ALUM 12000UF 20% 16V SNAP TH | CAP ALUM 12000UF 20% 16V SNAP TH |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
