LH1511BT
lmages are for reference only.LH1511BT
SSR RELAY SPST-NC 200MA 0-200V
Datasheet6-DIP (0.300", 7.62mm)
85,242 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NC (1 Form B) 6-DIP (0.300", 7.62mm)
LH1511BT
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | LH1511 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Circuit | SPST-NC (1 Form B) |
| Output Type | AC, DC |
| Voltage - Input | 1.26VDC |
| Voltage - Load | 0 V ~ 200 V |
| Load Current | 200 mA |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | UL, VDE |
| Grade | - |
| Qualification | - |
| Base Product Number | LH1511 |
| On-State Resistance (Max) | 10 Ohms |
| Product Attribute |  |
 |
 |
 |

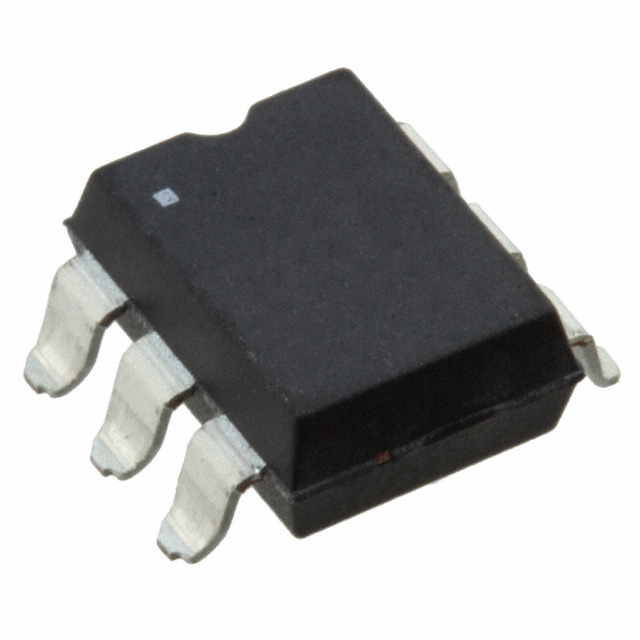

| Part Number | LH1511BAB | LH1511BABTR | LH1510-3039 | LH1510AAB |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NC 200MA 0-200V | SSR RELAY SPST-NC 200MA 0-200V | RELAY SSR SPST 6DIP | SSR RELAY SPST-NO 200MA 0-200V |
| Series | LH1511 | LH1511 | LH1510 | LH1510 |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
