LH1523BACTR
lmages are for reference only.LH1523BACTR
SSR RELAY SPST-NC 200MA 0-200V
Datasheet8-SMD (0.300", 7.62mm)
96,552 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NC (1 Form B) x 2 8-SMD (0.300", 7.62mm)
LH1523BACTR
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | LH1523 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NC (1 Form B) x 2 |
| Output Type | AC, DC |
| Voltage - Input | 1.22VDC |
| Voltage - Load | 0 V ~ 200 V |
| Load Current | 200 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SMD (0.300", 7.62mm) |
| Supplier Device Package | 8-SMD |
| Approval Agency | CSA, DIN, FIMKO, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | LH1523 |
| On-State Resistance (Max) | 10 Ohms |
| Product Attribute | |
 |
 |
 |

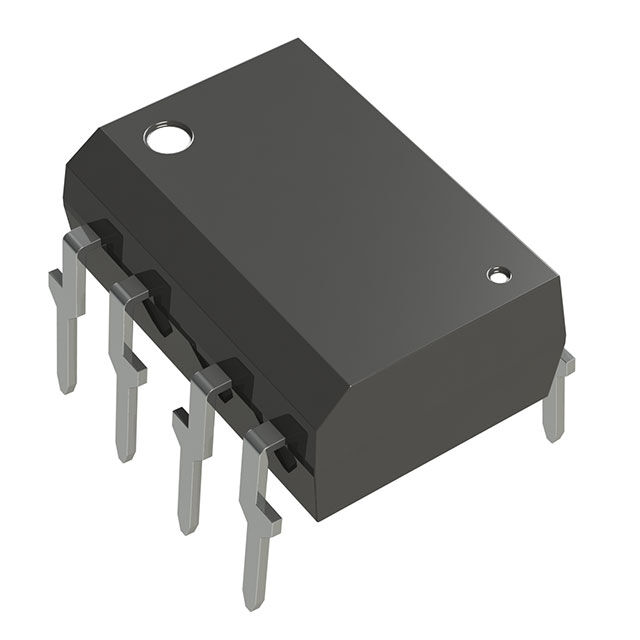

| Part Number | LH1523BAC | LH1520AAC | LH1520AACTR | LH1520AB |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NC 200MA 0-200V | SSR RELAY SPST-NO 110MA 0-350V | SSR RELAY SPST-NO 110MA 0-350V | SSR RELAY SPST-NO 110MA 0-350V |
| Series | LH1523 | LH1520 | LH1520 | LH1520 |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
