LH1556AAC
lmages are for reference only.LH1556AAC
SSR RELAY SPST-NO 120MA 0-350V
Datasheet8-SMD, Gull Wing
57,126 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) x 2 8-SMD, Gull Wing
LH1556AAC
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | LH1556 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) x 2 |
| Output Type | AC, DC |
| Voltage - Input | 1.26VDC |
| Voltage - Load | 0 V ~ 350 V |
| Load Current | 120 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Approval Agency | UL |
| Grade | - |
| Qualification | - |
| Base Product Number | LH1556 |
| On-State Resistance (Max) | 28 Ohms |
| Product Attribute |  |
 |
 |
 |

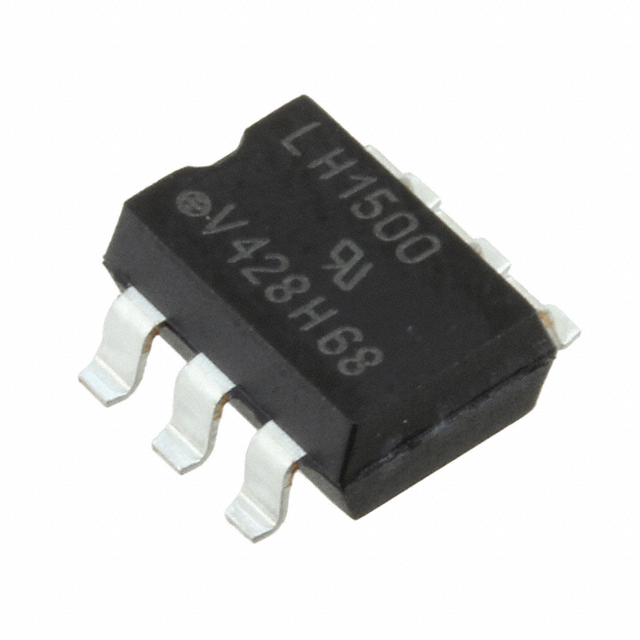

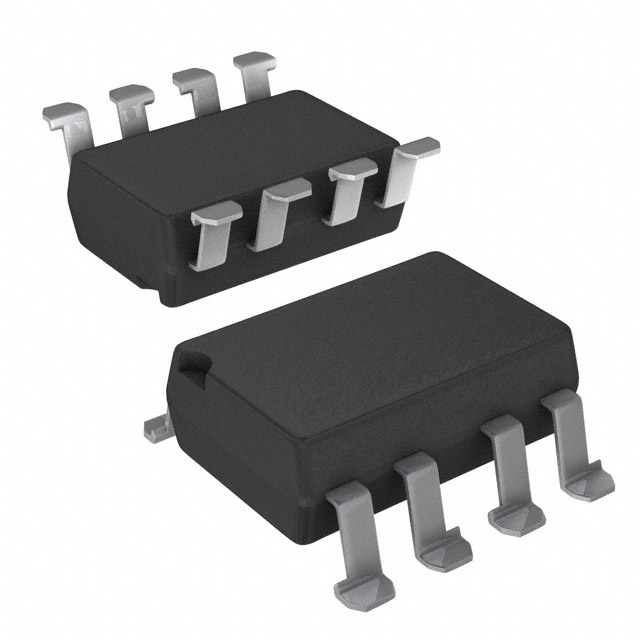

| Part Number | LH1556AACTR | LH1556AB | LH1500AAB | LH1500AABTR |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 120MA 0-350V | SSR RELAY SPST-NO 120MA 0-350V | SSR RELAY SPST-NO 150MA 0-350V | SSR RELAY SPST-NO 150MA 0-350V |
| Series | LH1556 | LH1556 | LH1500 | LH1500 |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
