LHL06TB470K

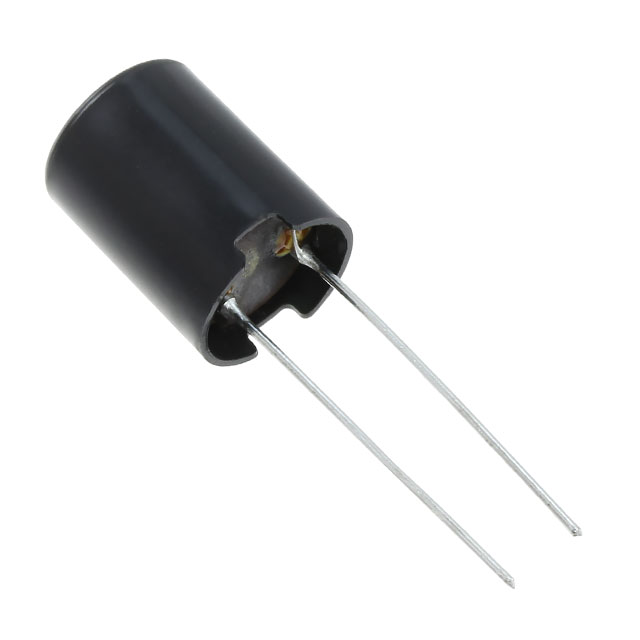

lmages are for reference only.LHL06TB470K
FIXED IND 47UH 270MA 850 MOHM TH
DatasheetRadial, Vertical Cylinder
52,606 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 µH Unshielded Inductor 270 mA 850mOhm Max Radial, Vertical Cylinder
LHL06TB470K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 270 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 850mOhm Max |
| Q @ Freq | 50 @ 2.52MHz |
| Frequency - Self Resonant | 8.5MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.268" Dia (6.80mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | LHL06TB471K | LHL06TB471K | LHL06TB471KA | LHL06TB472J |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 470UH 100MA 4.4 OHM TH | FIXED IND 470UH 100MA 4.4 OHM TH | FIXED IND 470UH 100MA 4.4 OHM TH | FIXED IND 4.7MH 33MA 42 OHM TH |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tray | Tray | Tape & Box (TB) | Tray |
