LHL10TB121KB

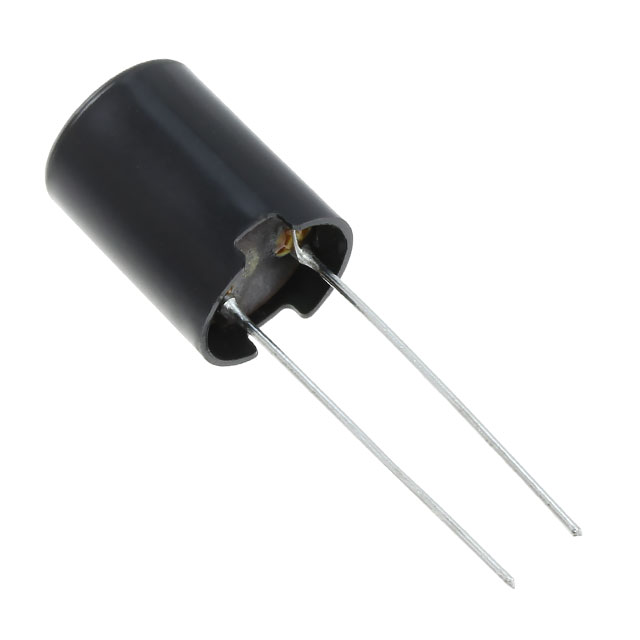

lmages are for reference only.LHL10TB121KB
FIXED IND 120UH 1A 250 MOHM TH
DatasheetRadial, Vertical Cylinder
71,012 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 µH Unshielded Inductor 1 A 250mOhm Max Radial, Vertical Cylinder
LHL10TB121KB
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 40 @ 796kHz |
| Frequency - Self Resonant | 3.2MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | LHL10TB121K | LHL10TB121K | LHL10TB120K | LHL10TB120K |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 120UH 1A 250 MOHM TH | FIXED IND 120UH 1A 250 MOHM TH | FIXED IND 12UH 2.8A 38 MOHM TH | FIXED IND 12UH 2.8A 38 MOHM TH |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
