LHL13TB680K

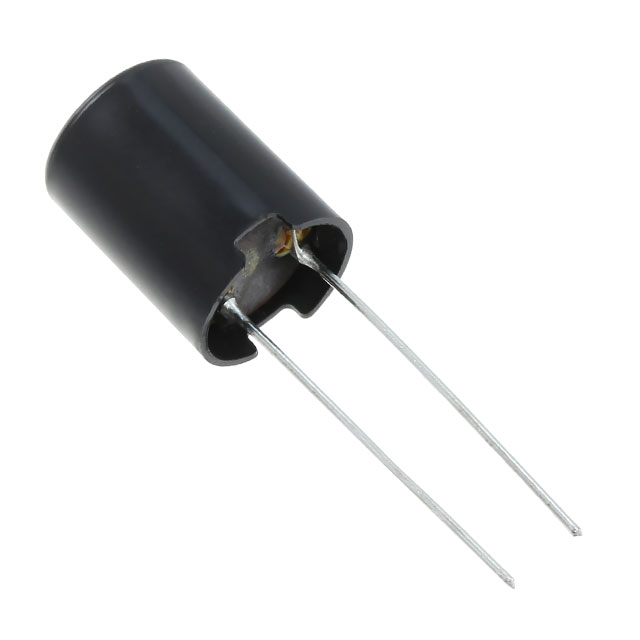

lmages are for reference only.LHL13TB680K
FIXED IND 68UH 2.4A 70 MOHM TH
DatasheetRadial, Vertical Cylinder
73,796 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µH Unshielded Inductor 2.4 A 70mOhm Max Radial, Vertical Cylinder
LHL13TB680K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.4 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | 50 @ 2.52MHz |
| Frequency - Self Resonant | 4.4MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.551" Dia (14.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | LHL13TB681K | LHL13TB681KS | LHL13TB681KS | LHL13TB682J |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 680UH 800MA 610MOHM TH | FIXED IND 680UH 800MA 610MOHM TH | FIXED IND 680UH 800MA 610MOHM TH | FIXED IND 6.8MH 250MA 5.6 OHM TH |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
