LHLC08TB333J

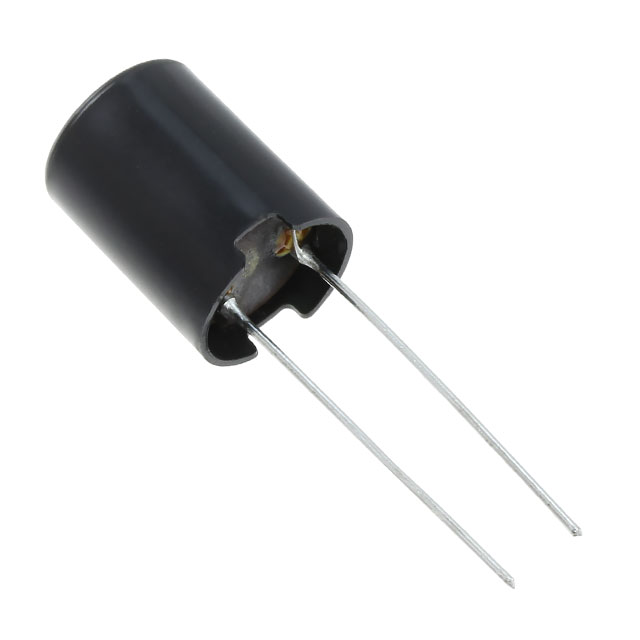

lmages are for reference only.LHLC08TB333J
FIXED IND 33MH 53MA 100 OHM TH
DatasheetRadial, Vertical Cylinder
15,634 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 mH Unshielded Inductor 53 mA 100Ohm Max Radial, Vertical Cylinder
LHLC08TB333J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LH, LC Type |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 33 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 53 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 100Ohm Max |
| Q @ Freq | 60 @ 79.6kHz |
| Frequency - Self Resonant | 230kHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | LHLC08TB331K | LHLC08TB332J | LHLC08TB390K | LHLC08TB391K |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 330UH 590MA 970MOHM TH | FIXED IND 3.3MH 190MA 8.5 OHM TH | FIXED IND 39UH 1.7A 120 MOHM TH | FIXED IND 390UH 550MA 1.1 OHM TH |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
