LHLZ06TB220K

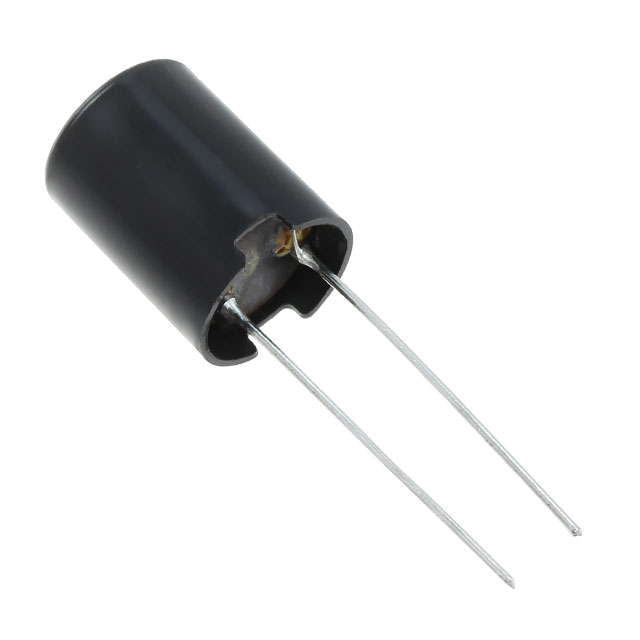

lmages are for reference only.LHLZ06TB220K
FIXED IND 22UH 1.2A 190 MOHM TH
DatasheetRadial, Vertical Cylinder
85,192 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Unshielded Inductor 1.2 A 190mOhm Max Radial, Vertical Cylinder
LHLZ06TB220K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LH, LZ Type |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 190mOhm Max |
| Q @ Freq | 20 @ 2.52MHz |
| Frequency - Self Resonant | 9.5MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | LHLZ06TB221K | LHLZ06TB221K | LHLZ06TB221KB | LHLZ06TB221KB |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220UH 360MA 2 OHM TH | FIXED IND 220UH 360MA 2 OHM TH | FIXED IND 220UH 360MA 2 OHM TH | FIXED IND 220UH 360MA 2 OHM TH |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tray | Tray | Tape & Box (TB) | Tape & Box (TB) |
