LLBHB2012KKT4R7M

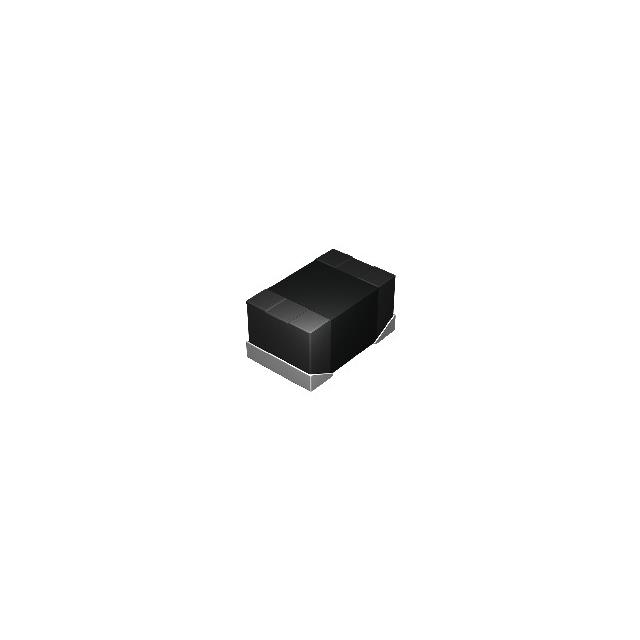

lmages are for reference only.LLBHB2012KKT4R7M
FIXED IND 4.7UH 600MA 615MOHM SM
Datasheet0805 (2012 Metric)
62,960 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Unshielded Wirewound Inductor 600 mA 615mOhm Max 0805 (2012 Metric)
LLBHB2012KKT4R7M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LLBH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 600mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 615mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LLBHB2012KKT4R7M | LLBHB2012KKT1R0M | LLBHB2012KKT1R5M | LLBHB2012KKT2R2M |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 4.7UH 600MA 615MOHM SM | FIXED IND 1UH 1.45A 106 MOHM SMD | FIXED IND 1.5UH 1.1A 173MOHM SMD | FIXED IND 2.2UH 850MA 290MOHM SM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
