LLDND3030MKTR30MM

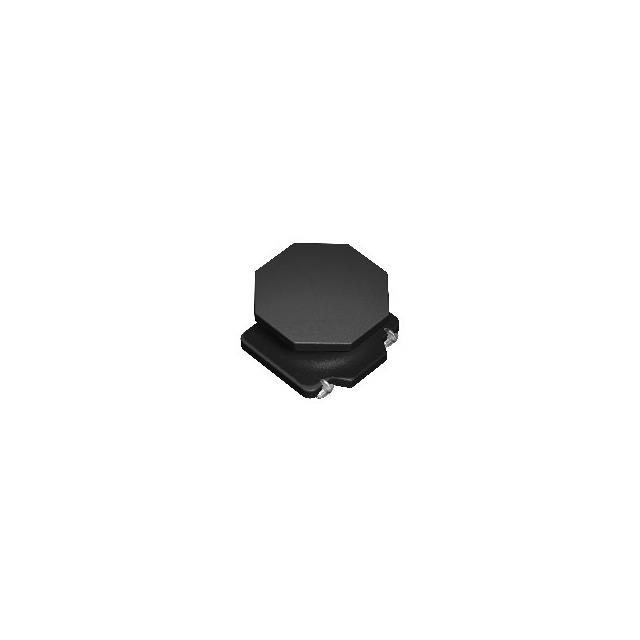

lmages are for reference only.LLDND3030MKTR30MM
FIXED IND 300NH 4.8A 20 MOHM SMD
Datasheet1212 (3030 Metric)
55,633 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
300 nH Unshielded Wirewound Inductor 5.5 A 20mOhm Max 1212 (3030 Metric)
LLDND3030MKTR30MM
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LLDN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 300 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 7.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 1212 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | LLDND3030MKTR30MM | LLDND3030MKTR33MM | LLDND3030MKTR33MM | LLDND3030MKT1R0MM |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 300NH 4.8A 20 MOHM SMD | FIXED IND 330NH 5.5A 20 MOHM SMD | FIXED IND 330NH 5.5A 20 MOHM SMD | FIXED IND 1UH 3.1A 50 MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
