LLDND4040WKTR33NM

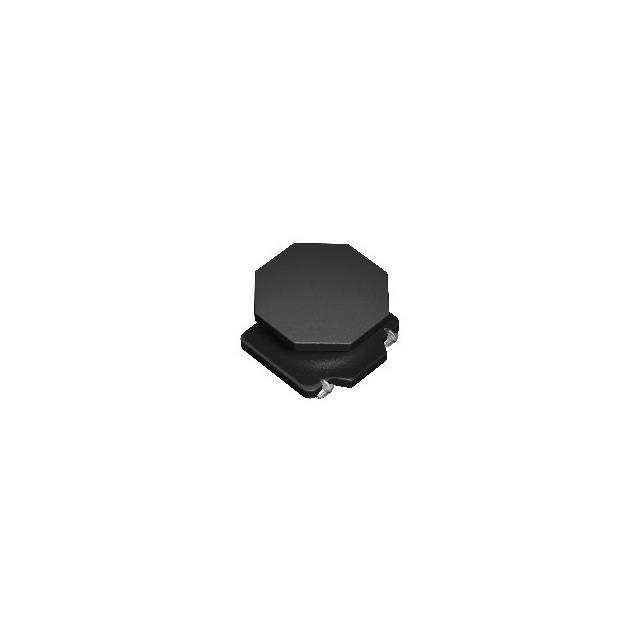

lmages are for reference only.LLDND4040WKTR33NM
FIXED IND 330NH 7.8A 13 MOHM SMD
Datasheet1616 (4040 Metric)
33,419 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 nH Unshielded Wirewound Inductor 7.8 A 13mOhm Max 1616 (4040 Metric)
LLDND4040WKTR33NM
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LLDN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 330 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 7.8 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 13mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Supplier Device Package | 1616 |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | LLDND4040WKTR33NM | LLDND4040WKT100MM | LLDND4040WKT100MM | LLDND4040WKT1R0MM |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 330NH 7.8A 13 MOHM SMD | FIXED IND 10UH 1.6A 194 MOHM SMD | FIXED IND 10UH 1.6A 194 MOHM SMD | FIXED IND 1UH 5.1A 27 MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
