LLG2C122MELB25
lmages are for reference only.Payment Methods
Delivery Services
1200 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
LLG2C122MELB25
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LLG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.575 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LLG2C122MELA35 | LLG2C122MELZ40 | LLG2C102MELA30 | LLG2C102MELZ40 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1200UF 20% 160V SNAP TH | CAP ALUM 1200UF 20% 160V SNAP TH | CAP ALUM 1000UF 20% 160V SNAP TH | CAP ALUM 1000UF 20% 160V SNAP TH |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |

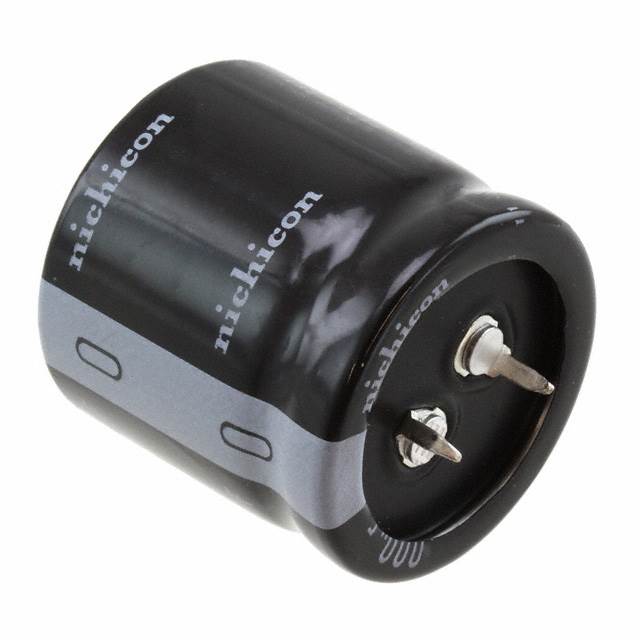

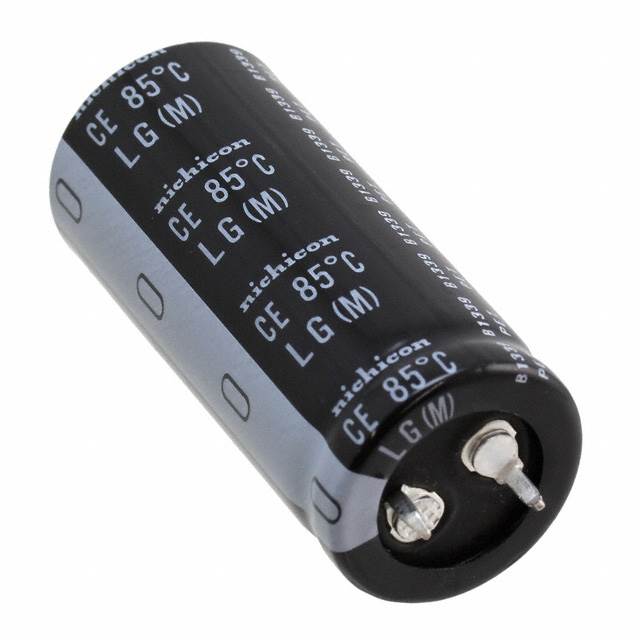

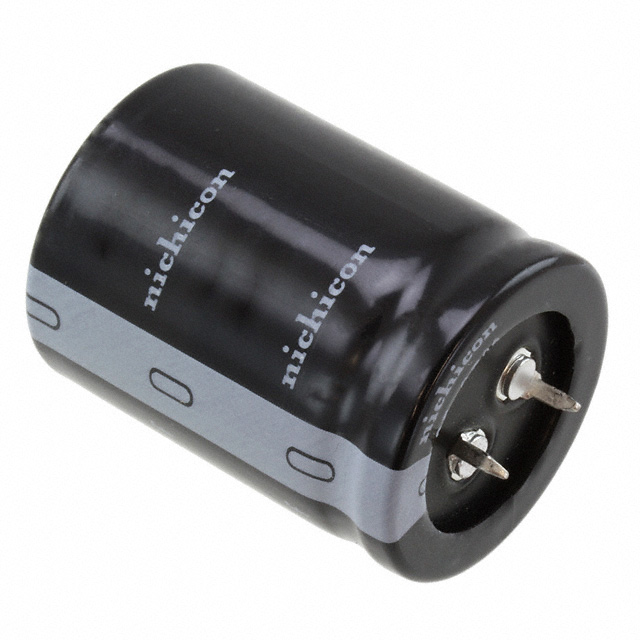

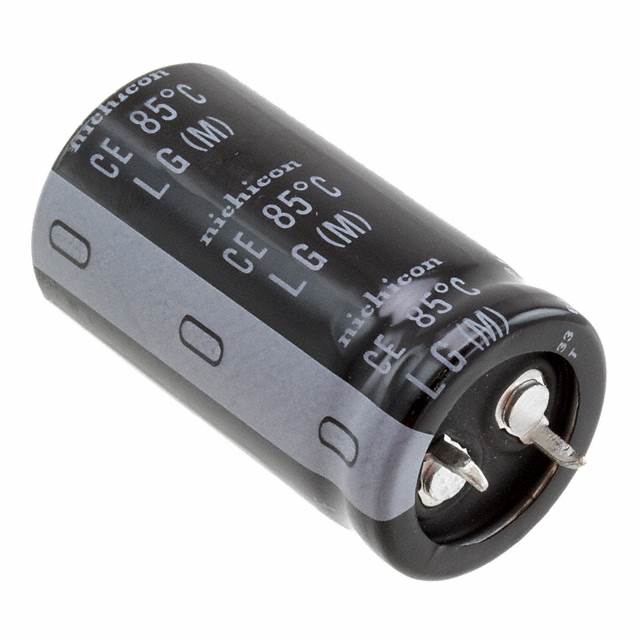

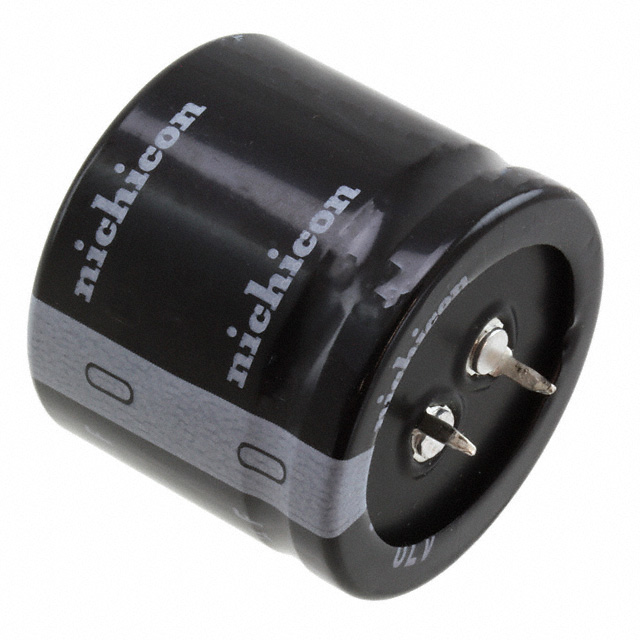

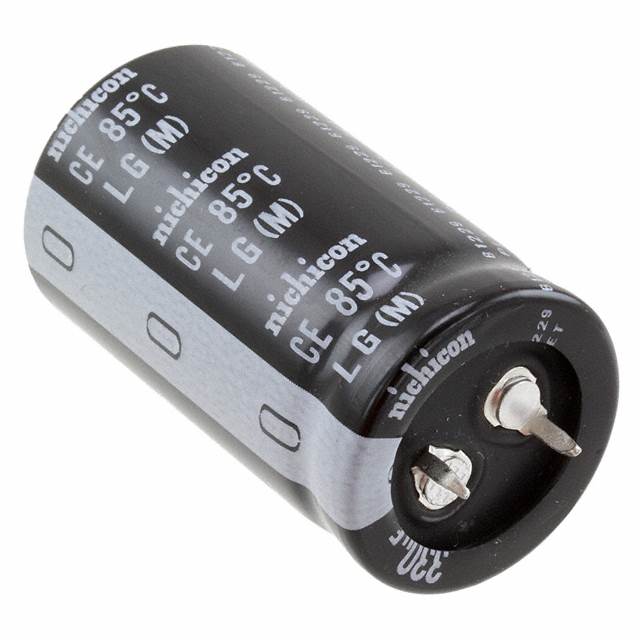

Recommended Products
