LLQPB160808T1R0M

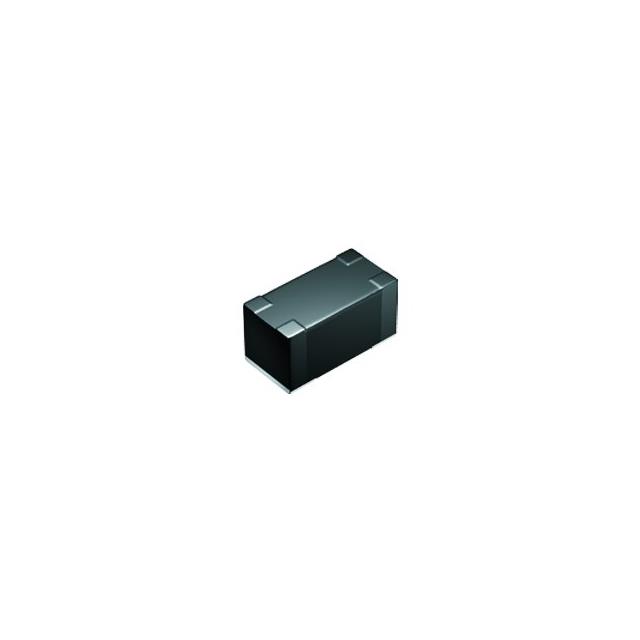

lmages are for reference only.LLQPB160808T1R0M
FIXED IND 1UH 520MA 234 MOHM SMD
Datasheet0603 (1608 Metric)
63,278 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Wirewound Inductor 520 mA 180mOhm 0603 (1608 Metric)
LLQPB160808T1R0M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LLQPB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 850mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 140MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LLQPB160808T1R0M | LLQPB160808T1R0M06 | LLQPB160808T1R5M | LLQPB160807T100M |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 520MA 234 MOHM SMD | FIXED IND 1UH 680MA 188 MOHM SMD | FIXED IND 1.5UH 410MA 300MOHM SM | FIXED IND 10UH 220MA 2.6 OHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
