LLXND4040KKL2R2MDG
lmages are for reference only.LLXND4040KKL2R2MDG
FIXED IND 2.2UH 1.5A 85 MOHM SMD
Datasheet1616 (4040 Metric)
32,051 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Shielded Wirewound Inductor 1.5 A 85mOhm 1616 (4040 Metric)
LLXND4040KKL2R2MDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LLXN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 1.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 85mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 73MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Supplier Device Package | 1616 |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

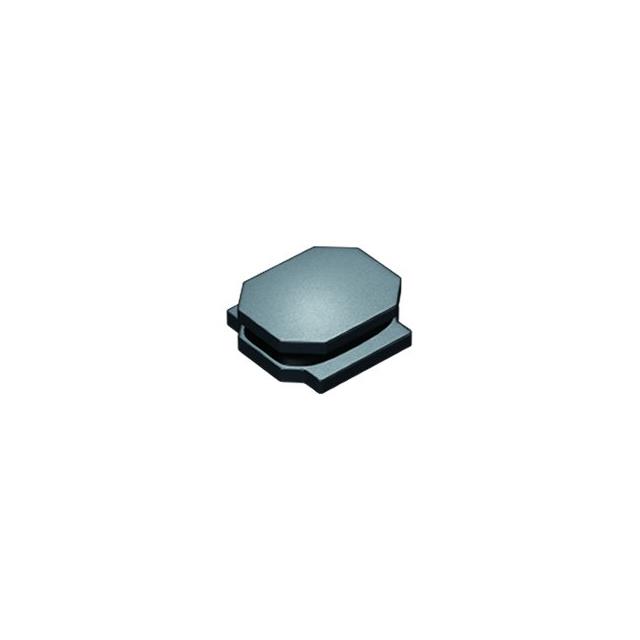

| Part Number | LLXND4040KKL100MDG | LLXND4040KKL150MDG | LLXND4040KKL1R0NDG | LLXND4040KKL220MDG |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 750MA 360MOHM SMD | FIXED IND 15UH 600MA 516MOHM SMD | FIXED IND 1UH 1.9A 67.2 MOHM SMD | FIXED IND 22UH 500MA 684MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
