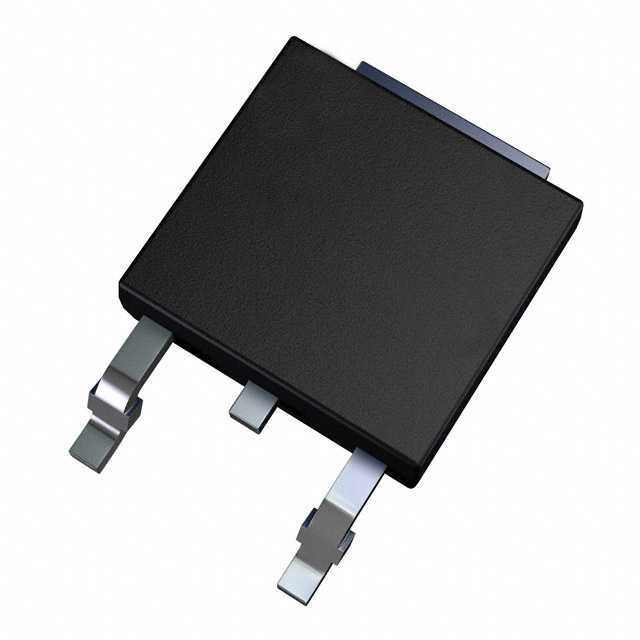

Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA TO-252
LM1117IDTX-3.3/J7003099
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LM1117IDTX-3.3/NOPB | LM1117IDT-3.3/NOPB | LM1117IDT-5.0 | LM1117IDT-5.0/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG LINEAR 3.3V 800MA TO252-3 | IC REG LINEAR 3.3V 800MA TO252-3 | IC REG LIN FIXED POS LDO REG 5V | IC REG LINEAR 5V 800MA TO252-3 |
| Series | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Bulk | Tube |
