LM26LVCISD-085/NOPB

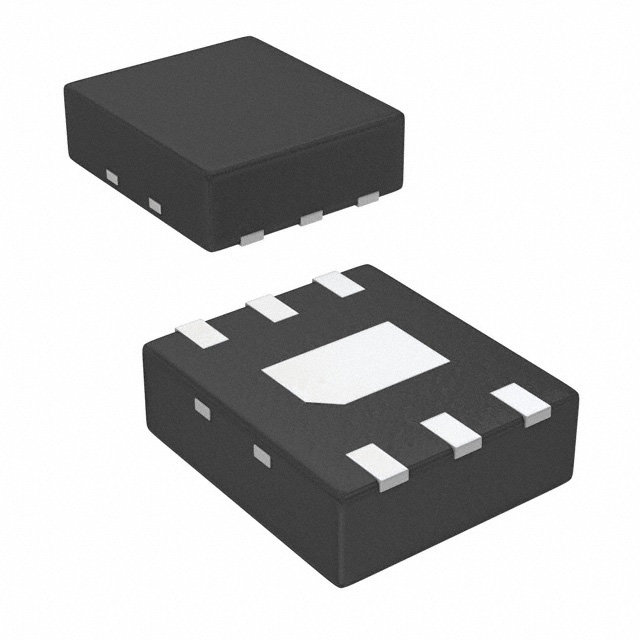

lmages are for reference only.LM26LVCISD-085/NOPB
LM26LV 1.6V-CAPABLE TEMPERATURE
Datasheet6-WDFN Exposed Pad
42,524 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Thermostat 85°C Active High, Active Low Open Drain, Push-Pull 6-WSON (2.2x2.5)
LM26LVCISD-085/NOPB
| Category | Sensors, Transducers - Temperature Sensors - Thermostats Solid State |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Trip Temperature Threshold | Hot |
| Switching Temperature | 85°C |
| Accuracy | ±2.2°C |
| Current - Output (Max) | 7mA |
| Output Type | Open Drain, Push-Pull |
| Output | Active High, Active Low |
| Output Function | OverTemp, /OverTemp, VTemp |
| Selectable Hysteresis | No |
| Features | Trip Test |
| Voltage - Supply | 1.6 V ~ 5.5 V |
| Current - Supply | 8µA |
| Operating Temperature | -50°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.2x2.5) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | LM26LVCISD-085/NOPB | LM26LVCISD-085/NOPB | LM26LVCISD-085/NOPB | LM26LVCISD-085/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | THERMOSTAT 85DEG ACT HI/LO 6WSON | THERMOSTAT 85DEG ACT HI/LO 6WSON | LM26LV 1.6V-CAPABLE TEMPERATURE | THERMOSTAT 85DEG ACT HI/LO 6WSON |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
