LM29150R-5.0
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-263-3
LM29150R-5.0
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | TAEJIN |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 20 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Load Dump, Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-263-3 |
| Base Product Number | - |
| Current - Supply (Max) | 22 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | LM29150R-12 | LM29150R-2.5 | LM29150RS-12 | LM29150RS-3.3 |
| Manufacturer | TAEJIN | TAEJIN | TAEJIN | TAEJIN |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

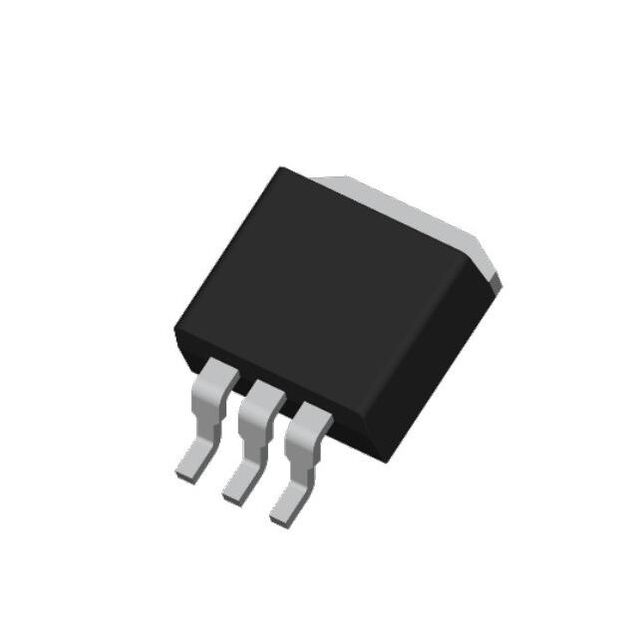

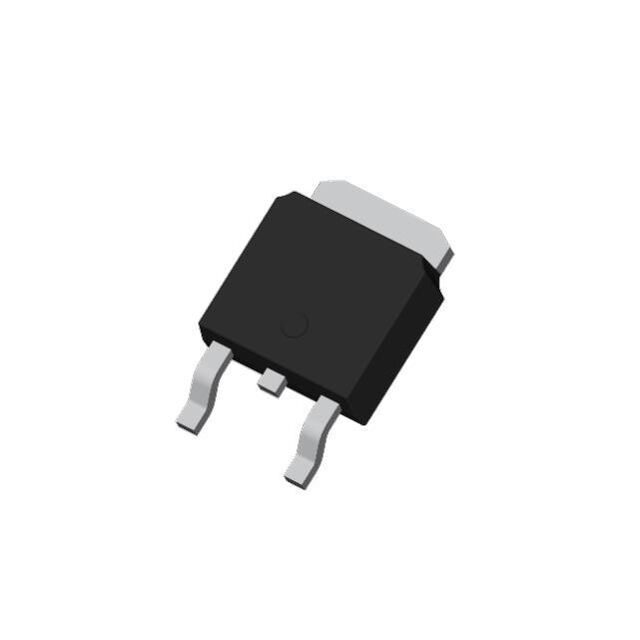

| Description | IC REG LINEAR 12V 1.5A TO263-3 | IC REG LINEAR 2.5V 1.5A TO263-3 | IC REG LINEAR 12V 1.5A TO252-3 | IC REG LINEAR 3.3V 1.5A TO252-3 |
| Series | TAEJIN | TAEJIN | TAEJIN | TAEJIN |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
