Product CatalogPart Number
LM35-23B24R2
Manufacturer
Mornsun America, LLCDescription
AC/DC CONVERTER 24V 36W
Datasheet
DatasheetPackage
-
In Stock
79,083 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LM35-23B24R2
LM35-23B24R2

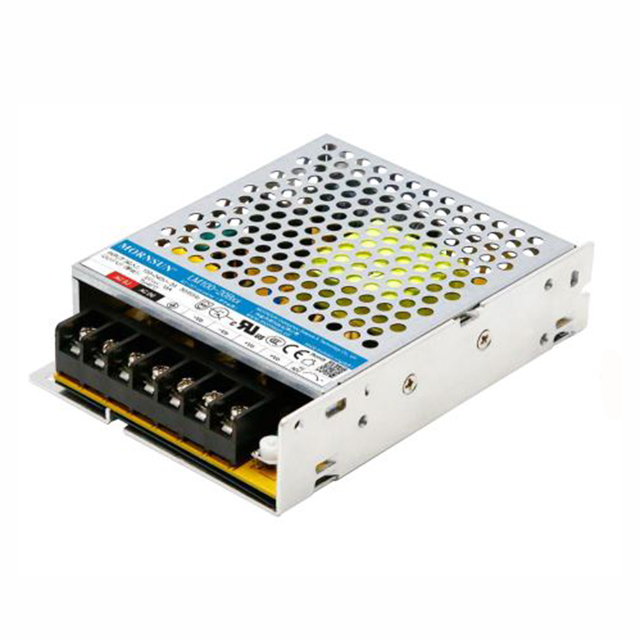

lmages are for reference only.Payment Methods
Delivery Services
Enclosed AC DC Converters 1 Output 24V 80 ~ 305 VAC, 100 ~ 430 VDC Input
Quick Inquiry
LM35-23B24R2
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | LM-R2 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 88.5% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.90" L x 2.56" W x 1.18" H (99.0mm x 65.0mm x 30.0mm) |
| Approval Agency | - |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 36W |
| Features | Adjustable Output, DC Input Capable |
| Standard Number | 60335-1; 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | LM35-23B24R2-C | LM35-23B24R2-CQ | LM35-23B24R2-Q | LM35-23B24 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | |||
| Description | ENCLOSED AC DC CONVERTERS 36W 1 | ENCLOSED AC DC CONVERTERS 36W 1 | ENCLOSED AC DC CONVERTERS 36W 1 | AC/DC CONVERTER 24V 36W |
| Series | LM35-23BxxR2-C (35W) | LM35-23BxxR2-CQ (35W) | LM35-23BxxR2-Q (35W) | 305RAC / LM-23B |
| Packaging | Box | Box | Box | Box |
