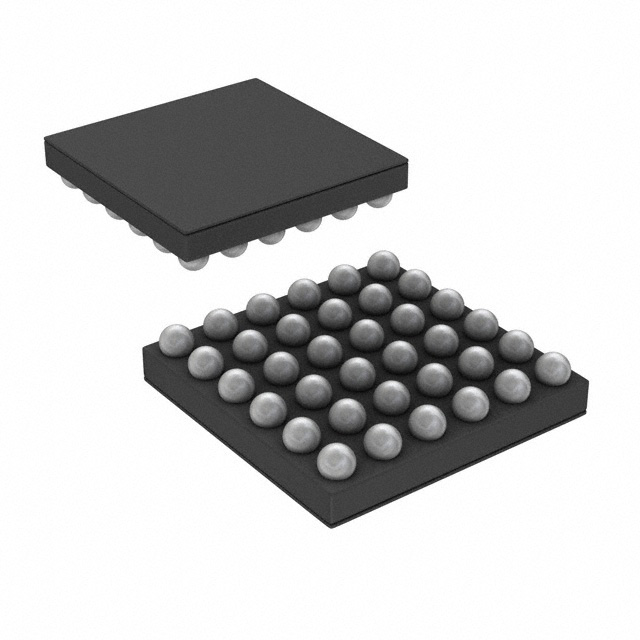

LM49250RL
lmages are for reference only.LM49250RL
AUDIO AMPLIFIER, 2.43W, 2 CHANNE
Datasheet36-WFBGA, DSBGA
48,216 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Amplifier IC 2-Channel (Stereo) with Mono and Stereo Headphones Class D 36-DSBGA
LM49250RL
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | National Semiconductor |
| Series | Boomer® |
| Packaging | Bulk |
| RoHS Status | |
| Type | Class D |
| Output Type | 2-Channel (Stereo) with Mono and Stereo Headphones |
| Max Output Power x Channels @ Load | 2.43W x 2 @ 4Ohm |
| Voltage - Supply | 2.7V ~ 5.5V |
| Features | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 36-DSBGA |
| Package / Case | 36-WFBGA, DSBGA |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

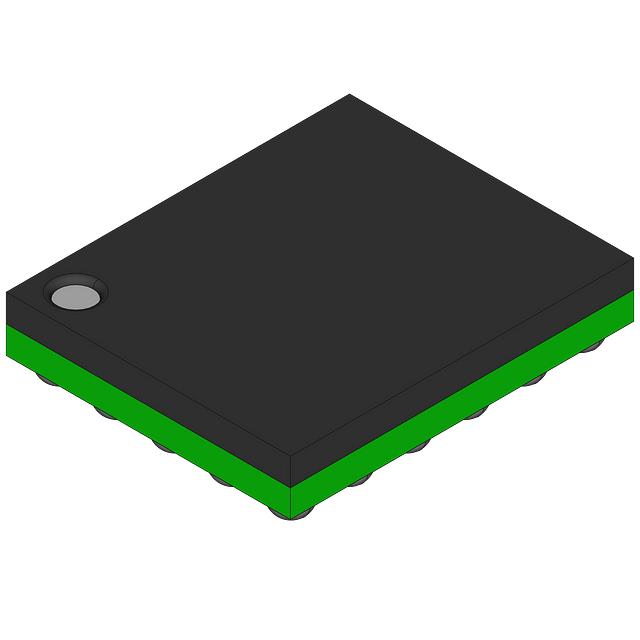

| Part Number | LM49250RL/NOPB | LM49250RLX/NOPB | LM49251TL/NOPB | LM49251TLX/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP CLSS D STER 2.43W 36DSBGA | IC AMP CLSS D STER 2.43W 36DSBGA | IC AMP D/G STEREO 1.37W 30USMD | IC AMP D/G STEREO 1.37W 30DSBGA |
| Series | Boomer®, PowerWise® | Boomer®, PowerWise® | Boomer®, PowerWise® | Boomer®, PowerWise® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
