LM5026MT-TI

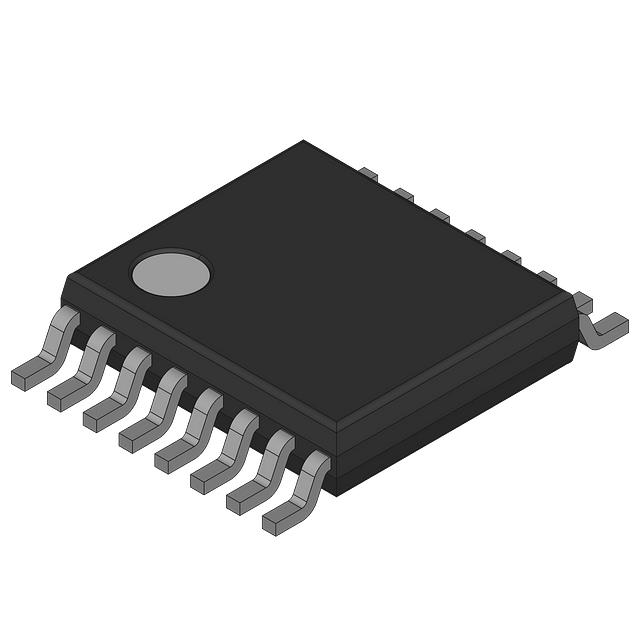

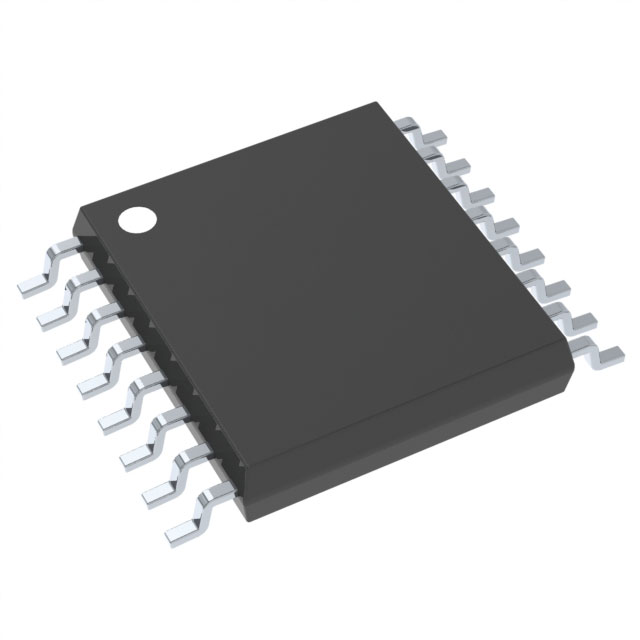

lmages are for reference only.LM5026MT-TI
SWITCHING CONTROLLER, CURRENT-MO
Datasheet16-TSSOP (0.173", 4.40mm Width)
76,374 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
LM5026MT-TI
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Forward Converter |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Frequency - Switching | 200kHz ~ 590kHz |
| Duty Cycle (Max) | 70%, 80% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Frequency Control, Reset, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | LM5026 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | LM5026MT | LM5026MT/NOPB | LM5026MT/NOPB | LM5026MTX |
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | IC REG CTRLR FWRD CONV 16TSSOP | IC REG CTRLR FWRD CONV 16TSSOP | LM5026 ACTIVE CLAMP CURRENT MODE | IC REG CTRLR FWRD CONV 16TSSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
