LM5027MHX-1/NOPB

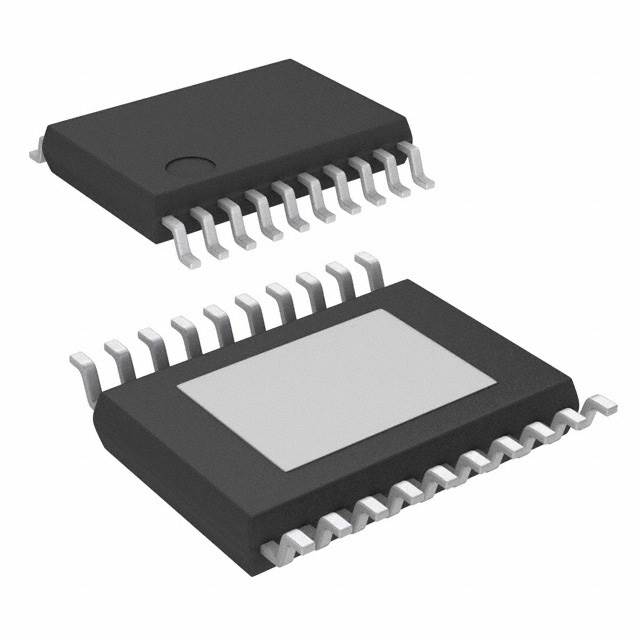

lmages are for reference only.LM5027MHX-1/NOPB
IC REG CTRLR FWRD CONV 20TSSOP
Datasheet20-PowerTSSOP (0.173", 4.40mm Width)
56,462 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 20-HTSSOP
LM5027MHX-1/NOPB
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Forward Converter |
| Number of Outputs | 3 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 13V ~ 90V |
| Frequency - Switching | 200kHz, 490kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Base Product Number | LM5027 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LM5027AMH/NOPB | LM5027AMHX/NOPB | LM5027ASQ/NOPB | LM5027MH/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR FWRD CONV 20TSSOP | IC REG CTRLR FWRD CONV 20TSSOP | IC REG CTRLR FWRD CONV 24WQFN | IC REG CTRLR FWRD CONV 20TSSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
