LM5030MMX/NOPB

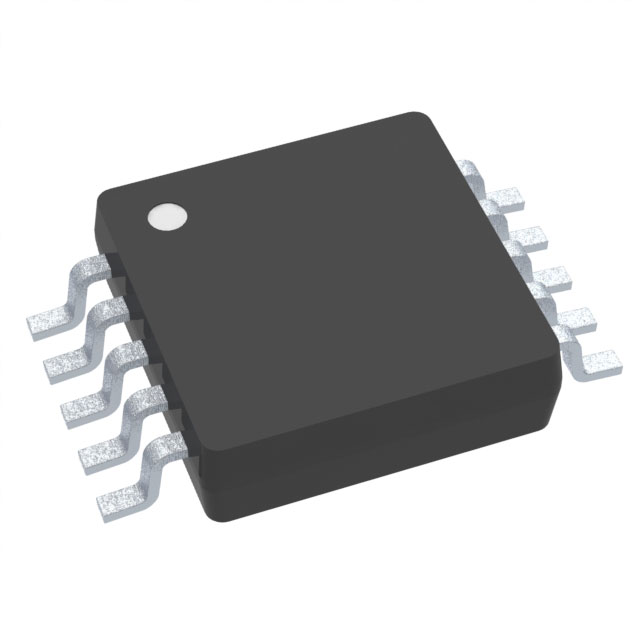

lmages are for reference only.LM5030MMX/NOPB
LM5030 100V PUSH-PULL CURRENT MO
Datasheet10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
12,349 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Full-Bridge, Half-Bridge, Push-Pull Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 10-VSSOP
LM5030MMX/NOPB
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 14V ~ 90V |
| Frequency - Switching | 200kHz, 600kHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | LM5030 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LM5030MMX/NOPB | LM5030MM | LM5030MM/NOPB | LM5030MMX |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC REG CTRLR MULT TOP 10MSOP | IC REG CTRLR MULT TOP 10MSOP | IC REG CTRLR MULT TOP 10MSOP | IC REG CTRLR MULT TOP 10MSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
