LM5642XMT
lmages are for reference only.LM5642XMT

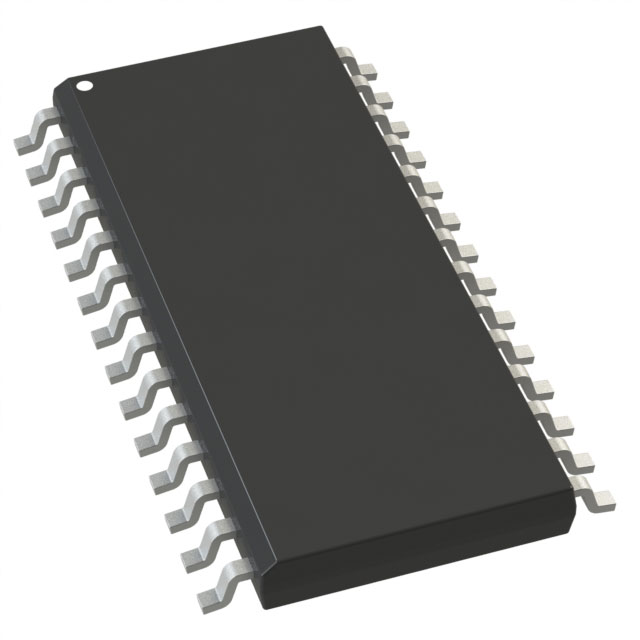

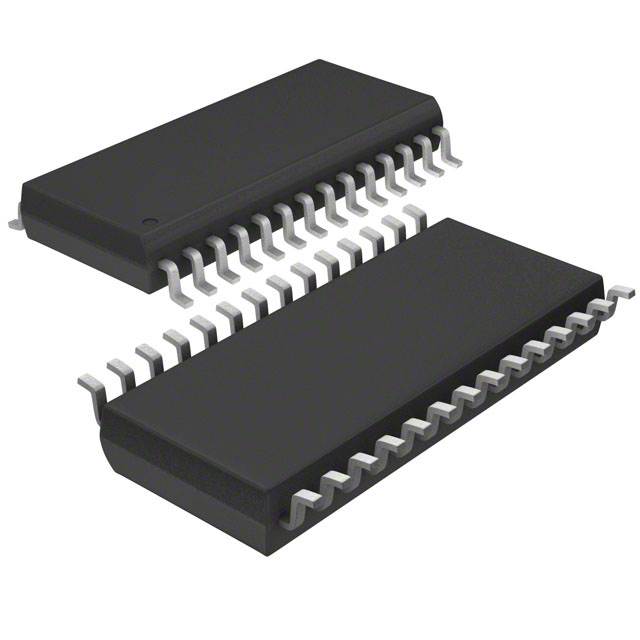

IC REG CTRLR BUCK 28TSSOP
Datasheet28-TSSOP (0.173", 4.40mm Width)
12,777 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 28-TSSOP
LM5642XMT
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 36V |
| Frequency - Switching | 375kHz |
| Duty Cycle (Max) | 98.9% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | LM5642 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LM5642XMH | LM5642XMH/NOPB | LM5642XMHX | LM5642XMHX/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC REG CTRLR BUCK 28ETSSOP | IC REG CTRLR BUCK 28TSSOP | IC REG CTRLR BUCK 28ETSSOP | IC REG CTRLR BUCK 28TSSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
