LME0509DC

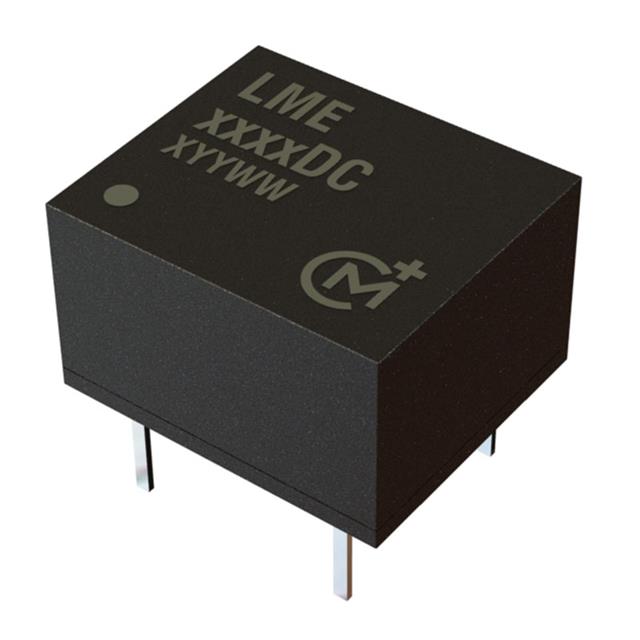

lmages are for reference only.LME0509DC
DC DC CONVERTER 9V 250MW
Datasheet7-DIP Module, 4 Leads
22,250 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 9V 28mA 4.5V - 5.5V Input
LME0509DC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | LME (0.25W) |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 28mA |
| Power (Watts) | 250 mW |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | 0°C ~ 70°C |
| Efficiency | 75% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 4 Leads |
| Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | LME05 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | LME0505DC | LME0505SC | LME0509SC | LME0305SC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 5V 250MW | DC DC CONVERTER 5V 250MW | DC DC CONVERTER 9V 250MW | DC DC CONVERTER 5V 250MW |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
