Product CatalogPart Number
LMF320-23B05-Q
Manufacturer
Mornsun America, LLCDescription
AC/DC CONVERTER 5V 300W
Datasheet
DatasheetPackage
-
In Stock
68,718 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LMF320-23B05-Q
LMF320-23B05-Q

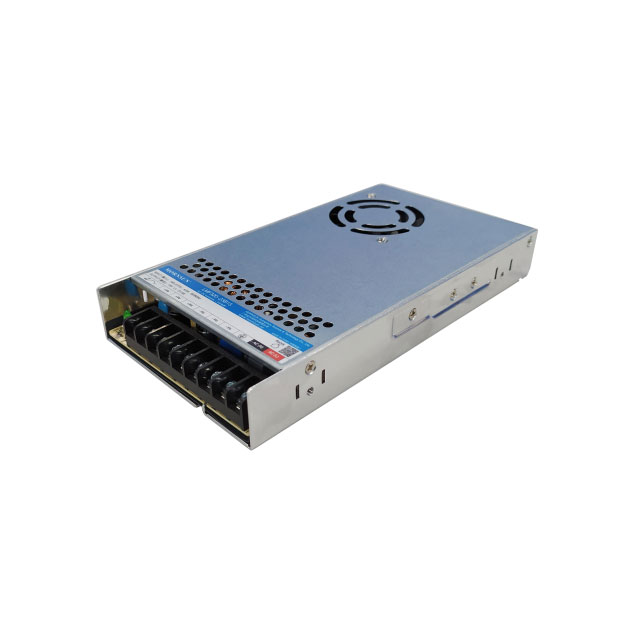

lmages are for reference only.Payment Methods
Delivery Services
Enclosed, Conformal Coated AC DC Converters 1 Output 5V 85 ~ 305 VAC, 120 ~ 430 VDC Input
Quick Inquiry
LMF320-23B05-Q
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | LMF320-23Bxx-Q (320W) |
| Packaging | Box |
| RoHS Status | |
| Type | Enclosed, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 120 ~ 430 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 60 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 84% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
| Approval Agency | CB, CCC, CE, cURus, UL |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 300W |
| Features | PFC, Standby Output, Universal Input |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | LMF320-23B05 | LMF320-23B05-C | LMF320-23B12 | LMF320-23B12-C |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | AC/DC CONVERTER 5V 300W | AC/DC CONVERTER 5V 300W | AC/DC CONVERTER 12V 320W | AC/DC CONVERTER 12V 320W |
| Series | 305RAC / LMF-23B | LMF320-23Bxx-C (320W) | 305RAC / LMF-23B | LMF320-23Bxx-C (320W) |
| Packaging | Box | Box | Box | Box |
