LMZ14202EXTTZ/NOPB

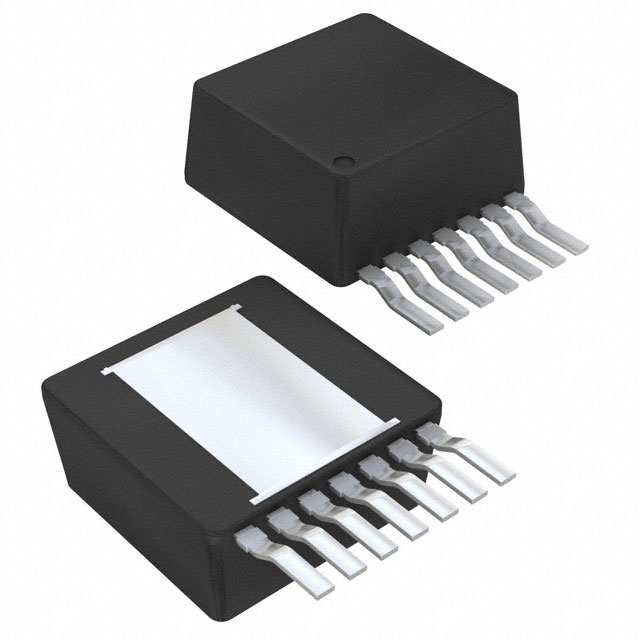

lmages are for reference only.LMZ14202EXTTZ/NOPB
DC DC CONVERTER 0.8-6V
DatasheetTO-PMOD-7, Power Module
62,845 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 2A 6V - 42V Input
LMZ14202EXTTZ/NOPB
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 42V |
| Voltage - Output 1 | 0.8 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | UVLO |
| Operating Temperature | -55°C ~ 125°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-PMOD-7, Power Module |
| Size / Dimension | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) |
| Supplier Device Package | TO-PMOD-7 |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | LMZ14202 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
|
 |
| Part Number | LMZ14202EXTTZE/NOPB | LMZ14202EXTTZX/NOPB | LMZ14202EXTTZX/NOPB | LMZ14202HTZ/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.8-6V | DC DC CONVERTER 0.8-6V | DC DC CONVERTER 0.8-6V | DC DC CONVERTER 5-30V |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
