LNA-30-04001200-15-10P
lmages are for reference only.LNA-30-04001200-15-10P
IC RF AMP VSAT 4GHZ-12GHZ MODULE
DatasheetModule, SMA Connectors
63,963 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC VSAT 4GHz ~ 12GHz Module
LNA-30-04001200-15-10P
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | L3 Narda-MITEQ |
| Series | LNA |
| Packaging | Box |
| RoHS Status | |
| Frequency | 4GHz ~ 12GHz |
| P1dB | 10dBm |
| Gain | 30dB |
| Noise Figure | 1.5dB |
| RF Type | VSAT |
| Voltage - Supply | 15V |
| Current - Supply | 250mA |
| Test Frequency | 4GHz ~ 12GHz |
| Mounting Type | - |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | Module |
| Base Product Number | LNA-30 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

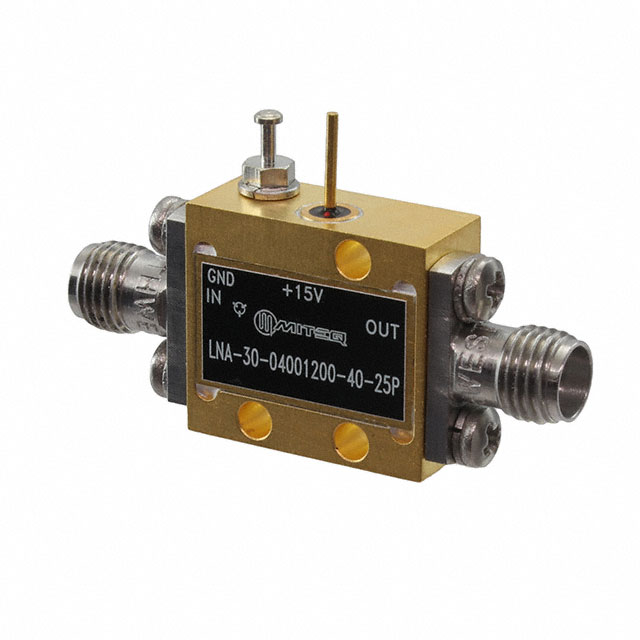

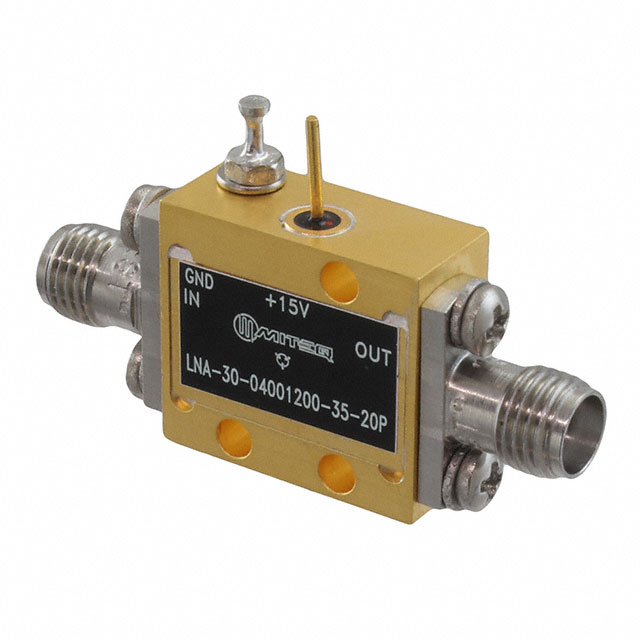

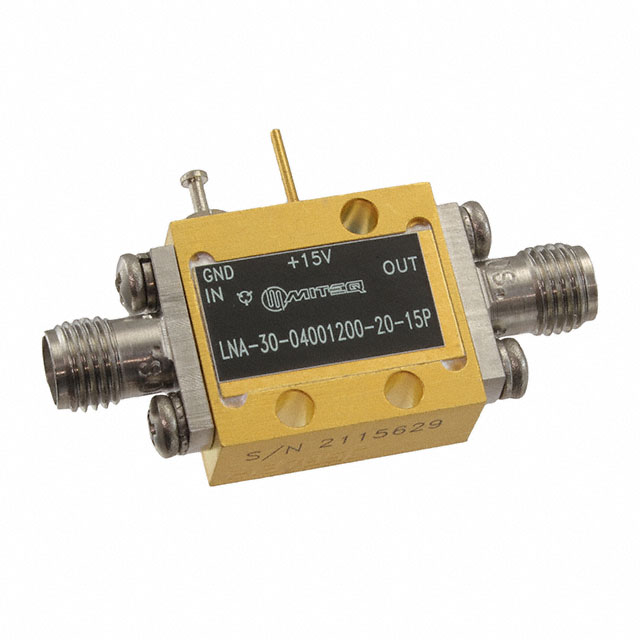

| Part Number | LNA-30-04001200-20-15P | LNA-30-04001200-35-20P | LNA-30-04001200-40-25P | LNA-30-00100400-13-10P |
| Manufacturer | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC RF AMP VSAT 4GHZ-12GHZ MODULE | IC RF AMP VSAT 4GHZ-12GHZ MODULE | IC RF AMP VSAT 4GHZ-12GHZ MODULE | IC RF AMP VSAT 100MHZ-4GHZ MOD |
| Series | LNA | LNA | LNA | LNA |
| Packaging | Box | Box | Box | Box |
