LNK3792D-H004-TL

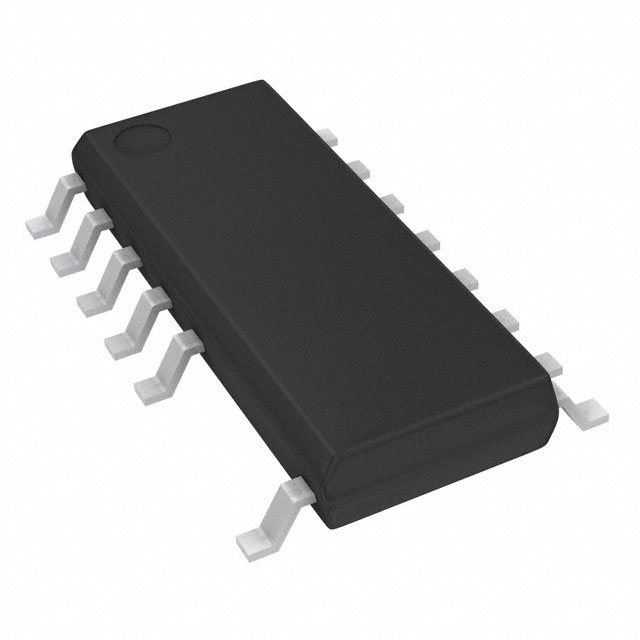

lmages are for reference only.LNK3792D-H004-TL
IC OFFLINE SWITCH FLBACK 16-SO B
Datasheet16-SOIC (0.154", 3.90mm Width), 14 Leads
13,102 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback, Secondary Side SR Topology 66kHz 16-SO B
LNK3792D-H004-TL
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Power Integrations |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Supply (Vcc/Vdd) | 85V ~ 265V |
| Duty Cycle | - |
| Frequency - Switching | 66kHz |
| Power (Watts) | 12 W |
| Fault Protection | Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Supplier Device Package | 16-SO B |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LNK3792D-H003-TL | LNK3792D-H006-TL | LNK6774V | LNK616PG |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |

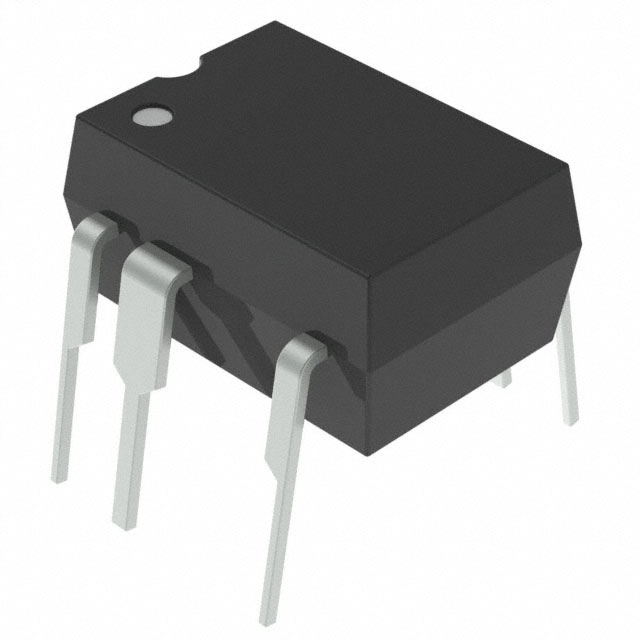

| Description | IC OFFLINE SWITCH FLBACK 16-SO B | IC OFFLINE SWITCH FLBACK 16-SO B | IC OFFLINE SWITCH FLYBACK 12EDIP | IC OFFLINE SWITCH FLYBACK 8DIP |
| Series | - | - | LinkSwitch™-HP | LinkSwitch®-II |
| Packaging | Bulk | Bulk | Tube | Tube |
