LNK6415D
lmages are for reference only.LNK6415D

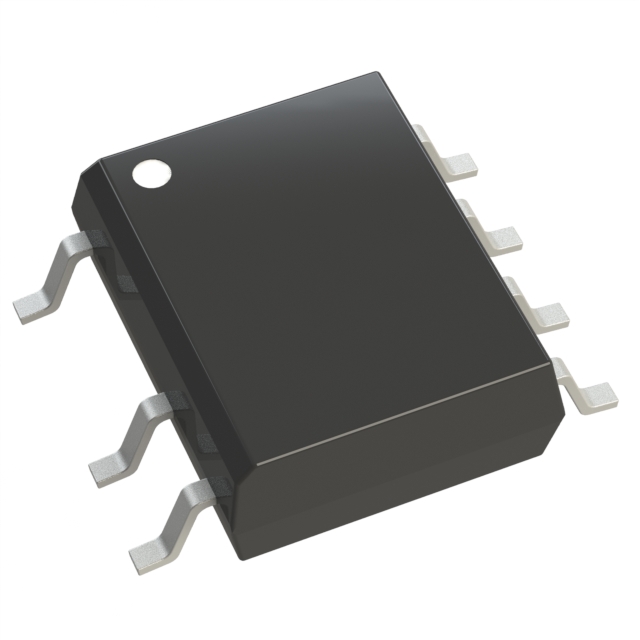

IC OFFLINE SWITCH FLYBACK 8SO
Datasheet8-SOIC (0.154", 3.90mm Width), 7 Leads
30,597 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology Up to 85kHz SO-8C
LNK6415D
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Power Integrations |
| Series | LinkSwitch™-3 |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 55% |
| Frequency - Switching | Up to 85kHz |
| Power (Watts) | 5.1 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
| Base Product Number | LNK6415 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LNK6415D-TL | LNK6404D | LNK6404D-TL | LNK6405D |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC OFFLINE SWITCH FLYBACK 8SO | IC OFFLINE SWITCH FLYBACK 8SO | IC OFFLINE SWITCH FLYBACK 8SO | IC OFFLINE SWITCH FLYBACK 8SO |
| Series | LinkSwitch™-3 | LinkSwitch™-3 | LinkSwitch™-3 | LinkSwitch™-3 |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
