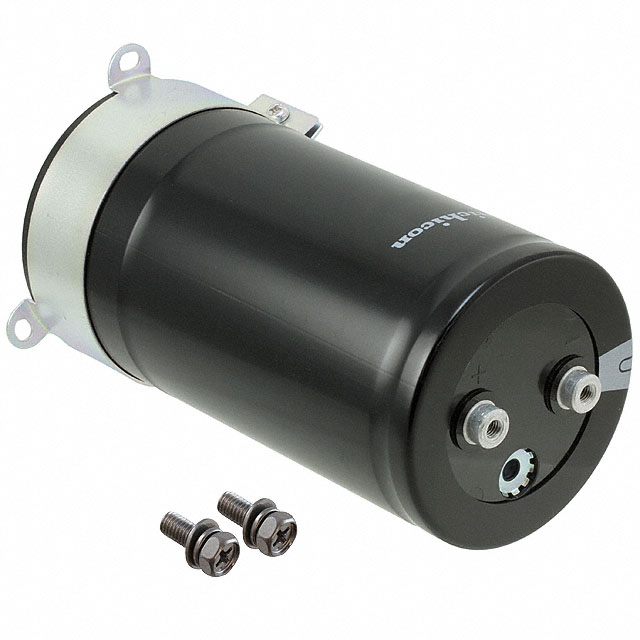

3300 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 105°C
LNT2H332MSEG
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LNT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 18.06 A @ 10 kHz |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 6.811" (173.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
 |
|
| Part Number | LNT2H332MSEGBB | LNT2H332MSEGBN | LNT2H332MSEH | LNT2H332MSEHBB |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 3300UF 20% 500V SCREW | CAP ALUM 3300UF 20% 500V SCREW | CAP ALUM 3300UF 20% 500V SCREW | CAP ALUM 3300UF 20% 500V SCREW |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
