LNX2W392MSEG
lmages are for reference only.Payment Methods
Delivery Services

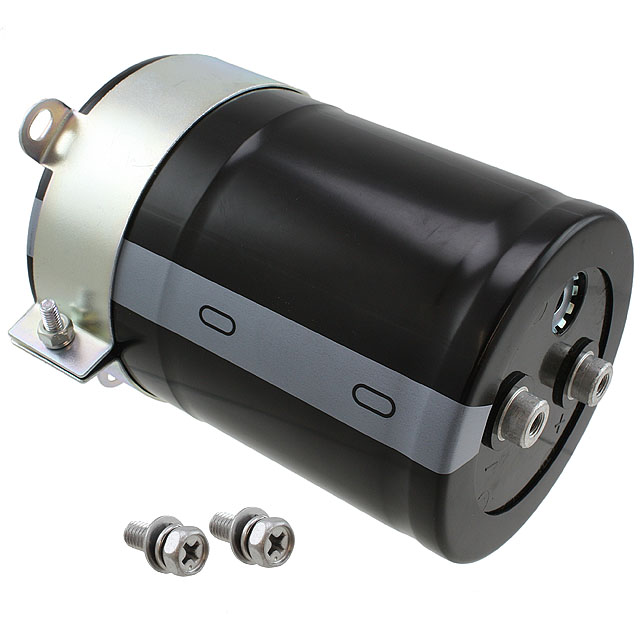

3900 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20000 Hrs @ 85°C
LNX2W392MSEG
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LNX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 21.14 A @ 10 kHz |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 6.811" (173.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
|
| Part Number | LNX2W392MSEGBB | LNX2W392MSEGBN | LNX2W392MSEH | LNX2W392MSEHBB |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 3900UF 20% 450V SCREW | CAP ALUM 3900UF 20% 450V SCREW | CAP ALUM 3900UF 20% 450V SCREW | CAP ALUM 3900UF 20% 450V SCREW |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
